Waterproof linear actuator mini size for automotive engine electric push rod, ce linear actuator for modified car
Product Description
Applicable scope: Production machinery, agricultural machinery, agricultural machinery, new energy vehicles, sex machines, special vehicles, modified vehicles, small motorcycles, motor vehicles, military, stage, textile, sewage treatment, ATV, cooking machine, throttle, solar energy......
Specification of different load force and speed by using different gear ratio.(Customizable)
Base

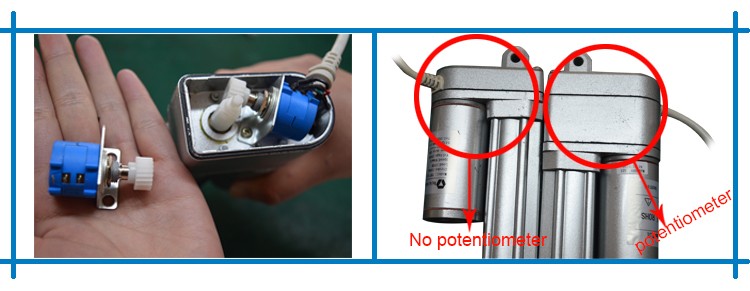

Potentiometer
| Stroke length | Customizable |
| Free load max speed | 40mm/s(100N) |
| Full load max speed | 5mm/s(1200N) |
| Limit switch | Built-in |
| Duty cycle | 20% |
| Outer tube | Aluminum tube |
| Inner tube | Aluminum tube |
| End clevis | Aluminum alloy |
| IP grade | IP65 |
| Operating temperature | -26℃~65℃ |
| Standard | CE,ROHS |
| Potentiometer | YES |
| Load capacity (N) | 1200 | 600 | 400 | 300 | 200 | 100 |
| Static load (N) | 1200 | 600 | 400 | 300 | 200 | 100 |
| Speed at full load (mm/s) | 5 | 10 | 15 | 20 | 30 | 40 |
| Input (VDC) | 12/24/36/48 | |||||
Base
Potentiometer

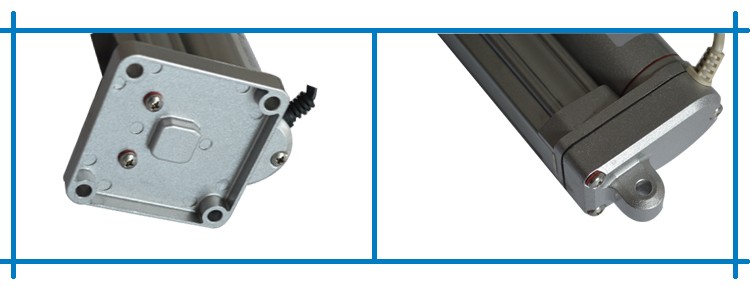

 | Common stent (YN-02) 1. Material: Steel A3 (Q235) 2. Size: 44*56*26mm 3. Hold Load 200Kg
We also accept bracket & holder customization, please tell us your requirements, we will give out a 3D drawing and a good price for you. |
|
Welcome to YONGNUO! We specialize in manufacturing
1.Q: Are you trading company or manufacturer ? A: We are factory. 2.Q: How much is the packaging size? A: Packing size is in accordance with your order, your product specifications to determine the package size. 3.Q: How much does shipping cost and what shipping methods do you support? A: Shipping cost is calculated based on the weight of the order and the distance it is travelling; Transport of large trucks to the seaport and international transport cooperation 4.Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. 5.Q: Do you provide customized Functions ? A: Yes, we can design and program as your requirements. If you have another question, please feel free to contact us
Contact us if you need more details on ce linear actuator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about ce linear actuator、ce linear actuator. If these products fail to match your need, please contact us and we would like to provide relevant information.
