Multi-function Linear Actuator Motor, Equipment usage Electric Lifting Column For Disabled/Aged People

Product Description

   YNT-06 lifting column, putter-type electric Lift Column is to achieve a variety of intelligent furniture platform for the development of a product, the product has a large range of stretching, smooth operation, good looks, easy to install, easy to operate, etc. , With the controller, you can achieve remote control electric lift column, push-type electric lift column in the lifting position of any height adjustment to meet the needs of the product height adjustment free adjustment.    Multi-function Linear Actuator Motor, Equipment usage Electric Lifting Column For Disabled/Aged People
Electric lift column YNT-06 TECHNICAL PARAMETER
Model YNT-06 Electric lift column Input voltage 12V/24VDC
Load capacity Max4000N(push)/4000N(pull) Stroke Customized Stroke Available
Maximum load 4000N (4mm/s) Operation temperature -26℃~+65℃
Free load speed 1000N (16mm/s) Protection class IP54
Duty cycle 20% Limit switch Built-in
Output Power 60w Noise level <=50dB
Pot Shanghai/Ningbo Control mode wired or wireless
Certificate CE,ROHS Minimum installation distance stroke+175mm
  Product Applications Electric medical bed, electric sofa, electric stand lift, industrial electric lift system, camera frame, video machine, wedding System, office, conference room, command center, dispatch room, central control room, product demonstration hall, multimedia lecture hall and other high-end places to use. Such as the teacher's desk, the traditional is a fixed table, can not adjust the height, the teachers are tired to stand up and walk. If you useYNT-06 lift column, we can achieve the station (sitting) alternate office, and convenient to adjust the cervical spine can be appropriate.

Noise and load

Low noise design, noise less than 50 dB, YNT-06 is a compact lift unit of the guidance and actuator function integration, the maximum load can reach 4000N, about 400KG

Lifting speed of 5mm / s, load 4000N

Lifting speed of 10mm / s,load2000N

Lifting speed of 30mm / s, load 500N

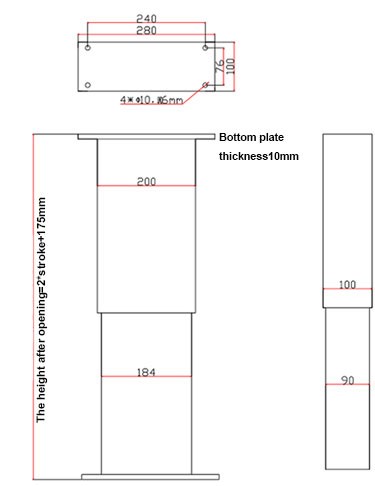

Flat size

Length and width of the size can not change, variable height

Minimum height = stroke+ 175mm

If the stroke is 200mm, the minimum height is 375mm

Up to the maximum height is 575mm, and so on, so the height determined by the stroke.

Special production, if you do 200mm stroke, the minimum height can do more than 375mm size, not less than 375mm

Product Introduction

1, voltage: 12 / 24VDC

2, the maximum operating current: 3A

3, push/pull force: 500-4000N

4, stroke: 50-600mm (support custom)

5, running speed: 5-30mm / s

6, the use of the environment: -26 ℃ -65 ℃

7, the shell protection class: IP54

8, power 60W

Product Attributes


Model:YNT-06 Electric lift column

Customization: Yes

Product Type: Brush DC Motor

Controller input voltage: 110-230VAC

The output voltage:12/24VDC

Rated speed: 4000 (rpm)

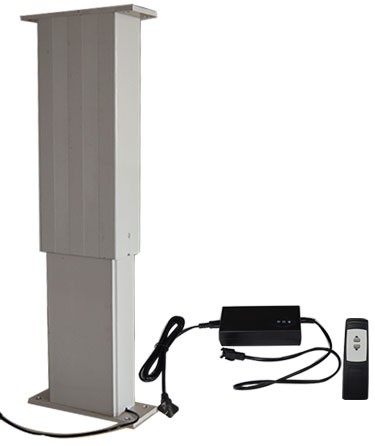

You can configure a wired or remote control

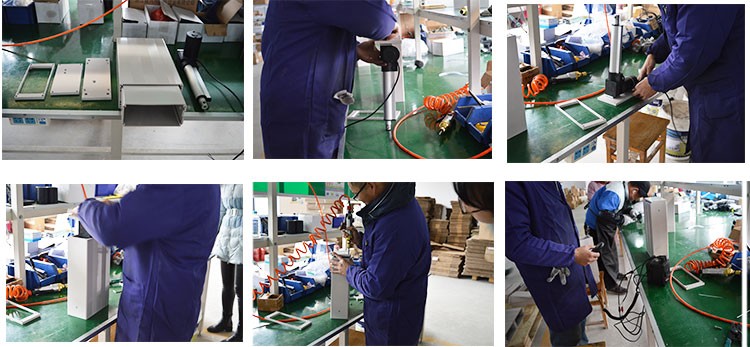

Installation process     YNT-06 Electric lift column— Quality Certification:ROHS and CE      Other linear actuators you may like:

YNT-03 Linear Actuator YNT-01 Linear Actuator YNT-01 Linear Actuator
