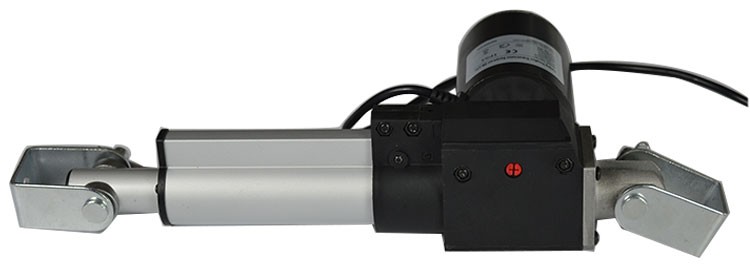

12V DC IP54 3000N Linear Actuator Stroke 600mm for kitchen ventilator Hood

Product Description

The  linear actuators are widely used in Construction machinery,Automotive field,Open various types of doors,electric care bed, electric operating bed, electric traction bed, electric massage chair, electric wheelchair, electric lift cabinet,Electric treadmill, LCD TV lift frame, bedside cabinet LCD TV intelligent hiding device, camera electric lift bar, wedding props push and pull institutions need to run linear Institutions of the occasion, the product design novel, self-locking performance is good, no steam source / oil, easy to install simple
LINER ACTUATOR YNT-01 TECHNICAL PARAMETER
Product Name YNT-01 Linear Actuator Input voltage 12/24VDC
Load capacity Max6000N(push)/6000(pull) Stroke 50mm~600mm(Customized Stroke Available)
Free load speed 30mm/s(500N) Operation temperature -26℃~+65℃
Full load speed 4mm/s(6000N) Protection class IP54
Duty cycle 20%(2 minutes continuous use in 8minutes)
Limit switch Built-in
Output Power 60w Noise level <=50dB
Pot Shanghai/Ningbo Control mode wired or wireless
Certificate CE, RoHS Minimum installation distance stroke+175mm
  Load Capacity and Speed performance: YNT-01 linear actuator support several load and speed based on different  worm gear ratio.

Dynamic Load Force

6000N

3000N

1500N

500N

Static Load Force

6000N

3000N

1500N

500N

Speed with Load

5mm/s

10mm/s

20mm/s

30mm/s

Input Voltage

12/24VDC

Fully Retracted Status

The length while fully retracted (Installation Length) is Stroke length+175mm,

e.g., the stroke is 200mm, the Installation Length would be 375mm (200+175mm).

Fully Extended Status

The length while fully extended length  is

Stroke length*2+175mm,

e.g., the stroke is 200mm, the fully extended Length would be 575mm (200*2+175mm).

Material List:
DC drive motor     Pure brass turbine (custom) Aluminum alloy outer tube

chassis Screw and turbine Micro Switch

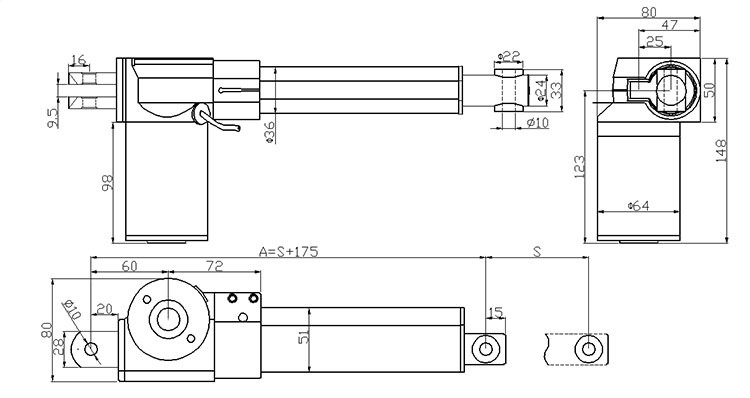

 Mounting Drawing in millimeter:     Common Standard Installation length:Customization
Stroke length (mm) 50 100 200 300 400 500 600
Installation Length (mm) 225 275 375 475 575 675 775
Weight(KG) 1.75 1.85 2.05 2.25 2.45 2.65 2.85

Square flat base
Aluminum base(standard)

Iron base Black rectangular base


Rod ends bearing

Punch holes

Optional different specifications Rod ends bearings. standard M8 holes or change the mounting Hole's Diameter.

Inner Tube Slot connector

Increase the Installation length

standard x6mm slot

You can ask us to increase the installation length.

e.g., sthoke length 100mm, the standard installation length is 275mm, we can make it for 300mm or more.



External thread



Batch can be customized external thread

Brackets & Holders

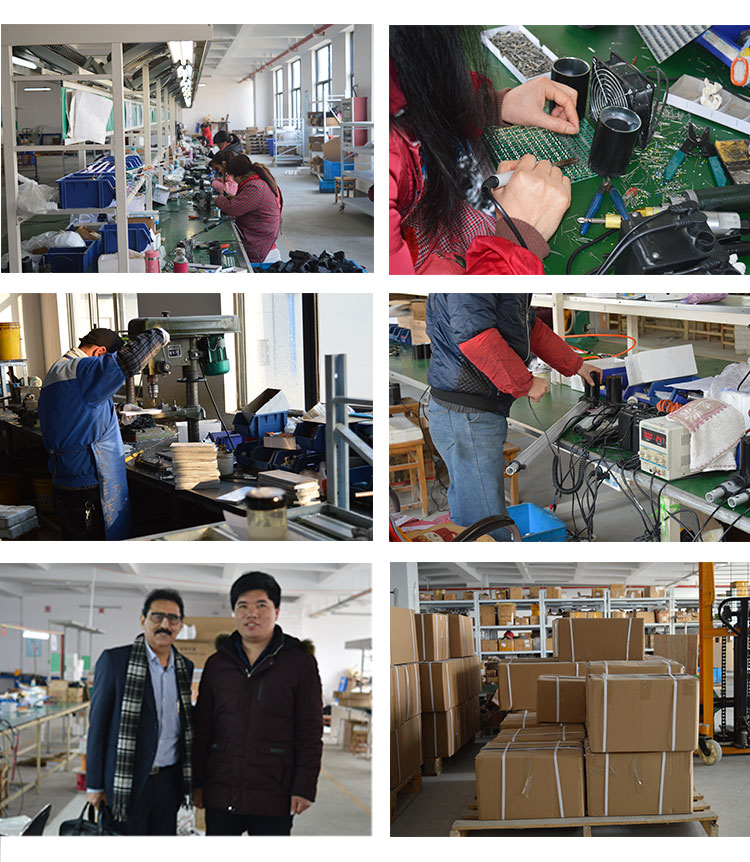

    Assembly Image We also accept bracket & holder customization, please tell us your requirements, we will give out a 3D drawing and a good price for you.        YNT-01 linear actuator— Quality Certification:ROHS and CE       Our Company: Welcome to YONGNUO!   Nanjing Yongnuo Transmission Equipment Co., Ltd specialize in manufacturing linear actuator, Control Box and Handset. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, Sanitation Sweeper, Special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success! Company Photo  Q: Are you trading company or manufacturer ? A: We are factory. Q: How much is the packaging size? A: Packing size is in accordance with your order, your product specifications to determine the package size. Q: How much does shipping cost and what shipping methods do you support? A: Shipping cost  is calculated based on the weight of the order and the distance it is travelling; Transport of large trucks to the seaport and international transport cooperation Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide customized Functions ? A: Yes, we can design and program as your requirements.  Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.   If you have another question, pls feel free to contact us

Contact us if you need more details on 12V DC IP54 3000N Linear Actuator Stroke 600mm. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Linear Actuator Stroke 600mm、Linear Actuator for kitchen ventilator\/Kitchen Hood. If these products fail to match your need, please contact us and we would like to provide relevant information.
