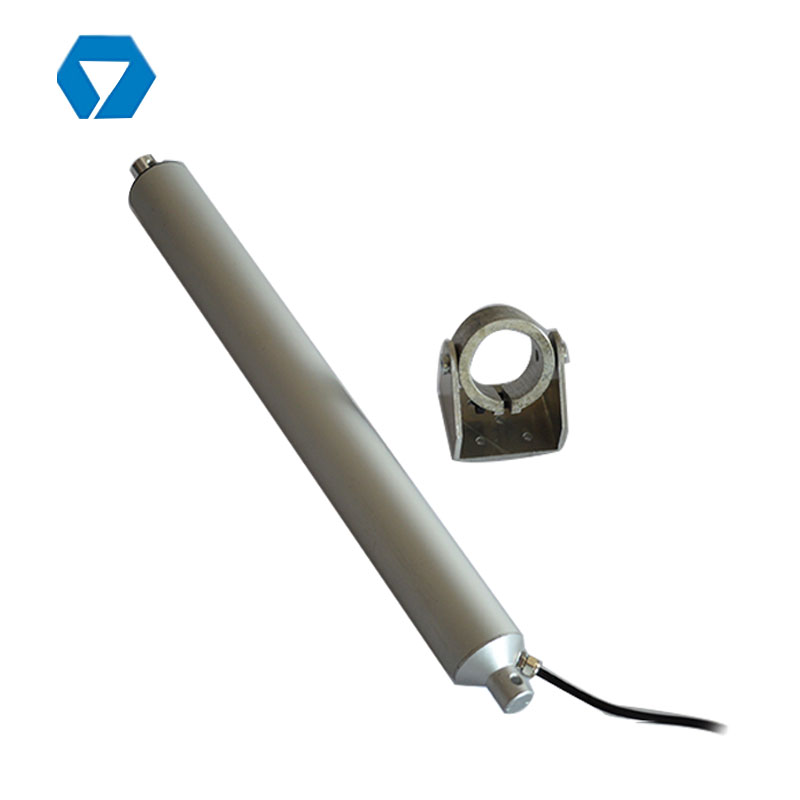

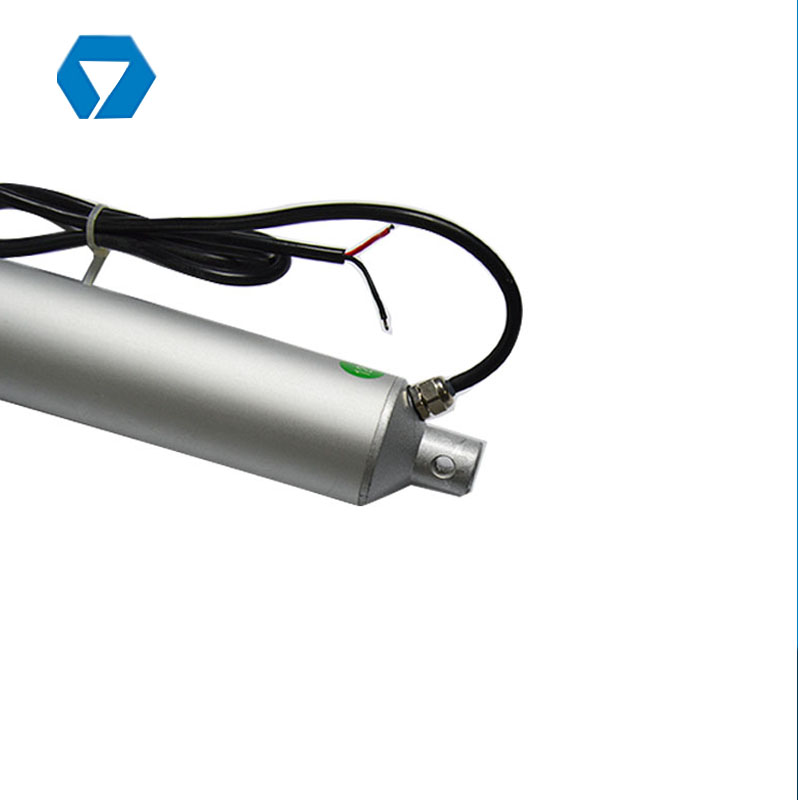

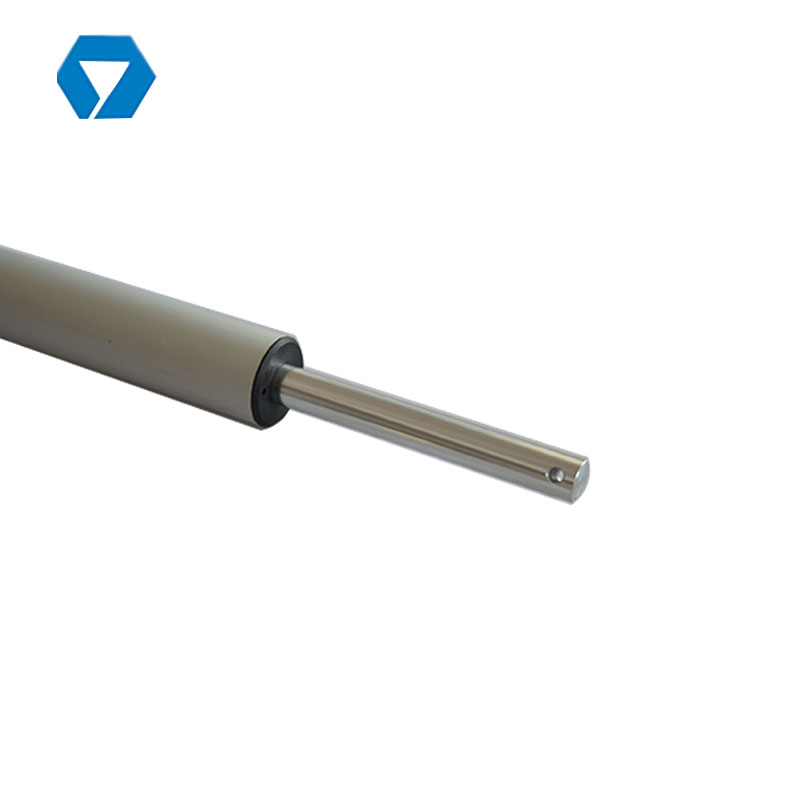

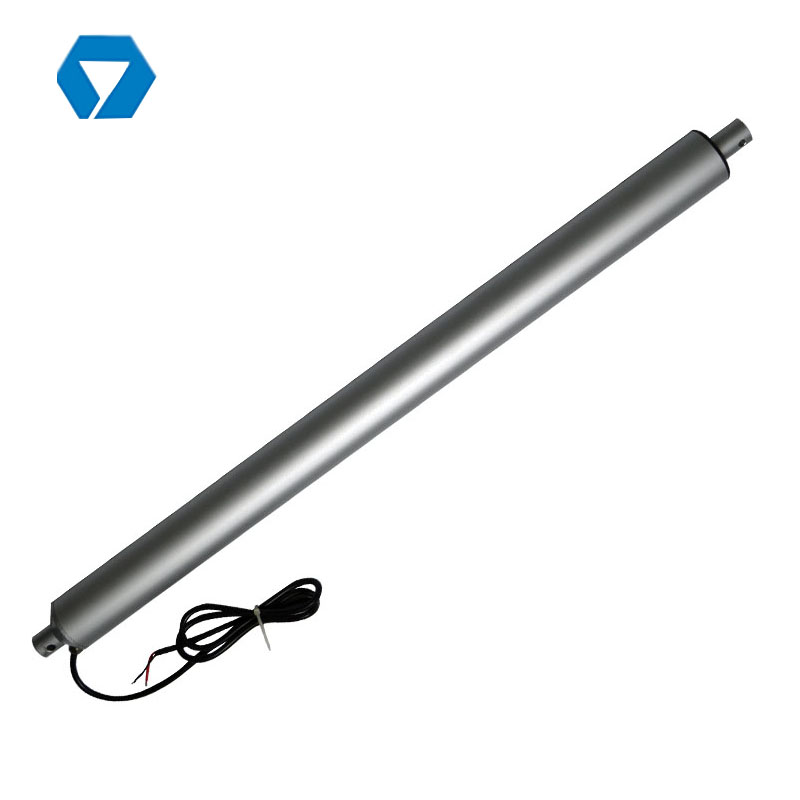

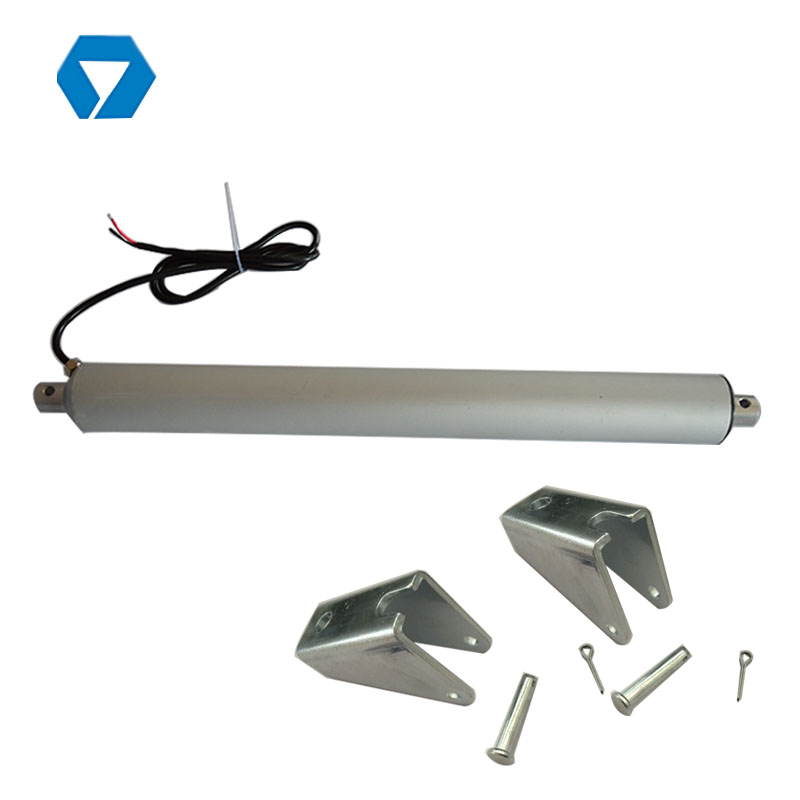

12 V DC Aluminum Tiny Tubular Linear Actuator with 45mm Diameter

Product Description

 Linear Actuator Description YNT-05 tubular actuator, with compact and flexible installation advantage, load from 500-1500N, load speed from 5-50mm/s,  besides, also with low noise operation. Therefore, it is widely used in small automatic industry, side window,open door etc. YNT-05 tubular linear actuator Technical Parameters:
1. 12V/24V / 36V/48 VDC permanent magnet DC brush motor;
2. Motor power: 45W
3. Maximum thrust up to 1500 N;
4. No load speed Example: 50mm/s(100N),30 mm / s (250N), 10 mm / s (1200N) ,5 mm / s (1500N) 5.Diameter:45mm
6. High-strength metal shell protection motor and powder metallurgy gear;
7. Design beautiful and compact, small installation size;
8. Standard protection class: IP65
9. Built-in planetary motor gears
10. Color: silver
11. Standard 1.m straight cable, 20AWG
12. Standard stroke: 100mm,150mm,200mm,250mm,300mm,350mm,400 mm (Stroke can be customized)

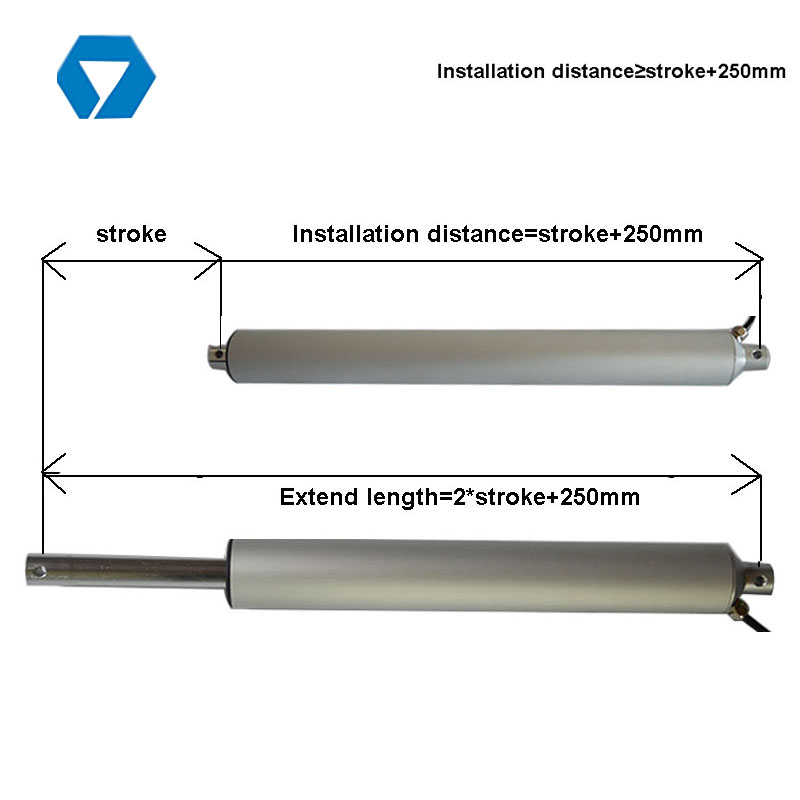

13. Standard minimum installation size: stroke + 250mm
14. Built-in stroke switch (not adjustable);
15. Strong wear-resistant nuts;
16. Maximum self-locking force 3000N
17. Maximum life: 50,000 times
18. Ambient temperature: -40 ° C to + 60 ° C
19. Noise level 55 dB (A), according to DS / EN ISO 3746, the drive is not loaded;
20. Certification: CE ROHS
21. Winding insulation class F (155 degrees). 22:.Certificate:CE,ROHS   Specification of different load force and speed by using different gear ratio
Load Capacity(N) 1500 1000 500
Static Load(N) 1500 1000 500
Speed at Full Load(mm/s) 5 10 27
Input(VDC) 12/24/36/48VDC
 Linear Actuator Drawing and Dimension      Product photo 12 V DC Aluminum Tiny Tubular Linear Actuator with 45mm Diameter   Control Box and power supply  and remote control   Product&Applications     YNT-05 linear actuator— Quality Certification:ROHS and CE   Other linear actuators you may like:

Our Company: Welcome to YONGNUO!   We specialize in manufacturing linear actuator, control box and Handset. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, Sanitation Sweeper, Special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success! Company Photo   Q: Are you trading company or manufacturer ? A: We are factory. Q: How much is the packaging size? A: Packing size is in accordance with your order, your product specifications to determine the package size. Q: How much does shipping cost and what shipping methods do you support? A: Shipping cost  is calculated based on the weight of the order and the distance it is travelling; Transport of large trucks to the seaport and international transport cooperation Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide customized Functions ? A: Yes, we can design and program as your requirements.  Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us

Contact us if you need more details on 12 V DC Aluminum Tubular Linear Actuator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Tiny Tubular Linear Actuator、Tubular Linear Actuator with 45mm Diameter. If these products fail to match your need, please contact us and we would like to provide relevant information.
