The linear actuators are widely used in Construction machinery,Automotive field,Open various types of doors,electric care bed, electric operating bed, electric traction bed, electric massage chair, electric wheelchair, electric lift cabinet,Electric treadmill, LCD TV lift frame, bedside cabinet LCD TV intelligent hiding device, camera electric lift bar, wedding props push and pull institutions need to run linear Institutions of the occasion, the product design novel, self-locking performance is good, no steam source / oil, easy to install simple Bed Driver Linear Actuator
price with Handcontroller and Power
|LINER ACTUATOR YNT-01 TECHNICAL PARAMETER|
|Product Name ||YNT-01 Linear Actuator ||Input voltage ||12/24VDC |
|Load capacity ||Max6000N(push)/6000(pull) ||Stroke ||50mm~600mm(Customized Stroke Available) |
|Free load speed ||30mm/s(500N) ||Operation temperature ||-26℃~+65℃ |
|Full load speed ||4mm/s(6000N) ||Protection class ||IP54 |
|Duty cycle ||20%(2 minutes continuous use in 8minutes) ||Limit switch ||Built-in |
|Output Power ||60w ||Noise level ||<=50dB |
|Pot ||Shanghai/Ningbo ||Control mode ||wired or wireless |
|Certificate ||CE, RoHS ||Minimum installation distance ||stroke+175mm |
Load Capacity and Speed performance: YNT-01 linear actuator support several load and speed based on different worm gear ratio.
Dynamic Load Force
Static Load Force
Speed with Load
| Fully Retracted Status |
The length while fully retracted (Installation Length) is Stroke length+175mm,
e.g., the stroke is 200mm, the Installation Length would be 375mm (200+175mm).
Fully Extended Status
The length while fully extended length is
e.g., the stroke is 200mm, the fully extended Length would be 575mm (200*2+175mm).
|DC drive motor ||Pure brass turbine (custom) ||Aluminum alloy outer tube |
|chassis ||Screw and turbine ||Micro Switch |

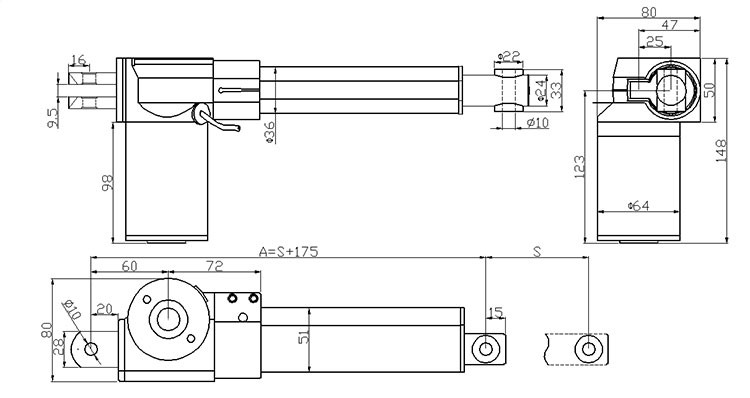

Mounting Drawing in millimeter:
Common Standard Installation length:Customization
|Stroke length (mm) ||50 ||100 ||200 ||300 ||400 ||500 ||600 |
|Installation Length (mm) ||225 ||275 ||375 ||475 ||575 ||675 ||775 |
|Weight(KG) ||1.75 ||1.85 ||2.05 ||2.25 ||2.45 ||2.65 ||2.85 |
|Square flat base ||Aluminum base(standard) |
|Iron base ||Black rectangular base |
Rod ends bearing
|Optional different specifications Rod ends bearings. ||standard M8 holes or change the mounting Hole's Diameter. |
Inner Tube Slot connector
Increase the Installation length
|standard x6mm slot || |
You can ask us to increase the installation length.
e.g., sthoke length 100mm, the standard installation length is 275mm, we can make it for 300mm or more.
Batch can be customized external thread
|Brackets & Holders |
Assembly Image We also accept bracket & holder customization, please tell us your requirements, we will give out a 3D drawing and a good price for you.
YNT-01 linear actuator— Quality Certification:ROHS and CE
Our Company: Welcome to YONGNUO! Nanjing Yongnuo Transmission Equipment Co., Ltd specialize in manufacturing linear actuator, Control Box

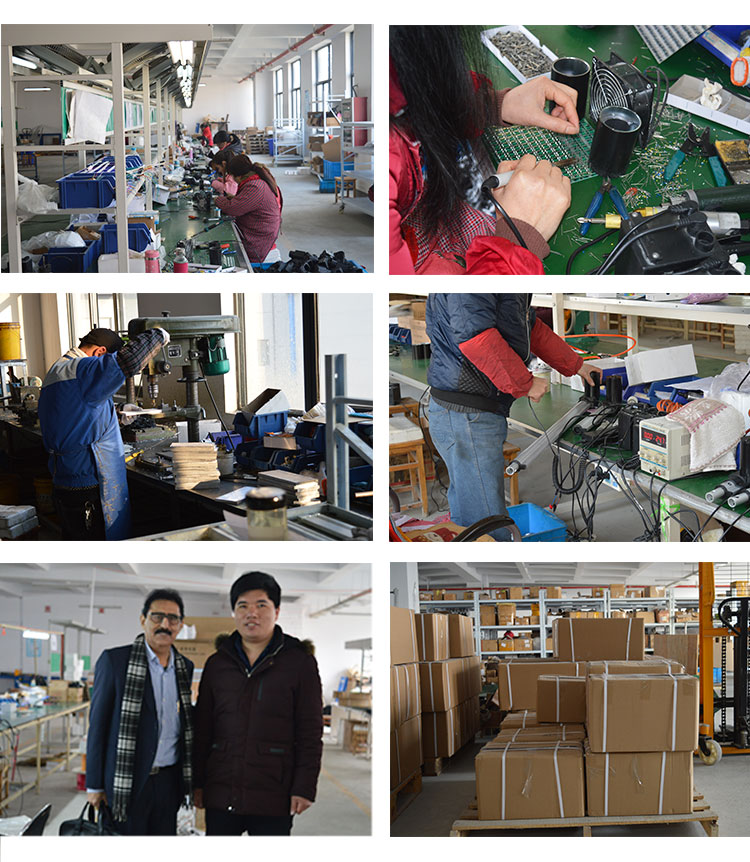

. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, Sanitation Sweeper, Special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success! Company Photo
