Nanjing Yongnuo Transmission Equipment Co., Ltd.. We are one designer and manufacturer of linear actuators in China for years. Now we offer some Metal gear type

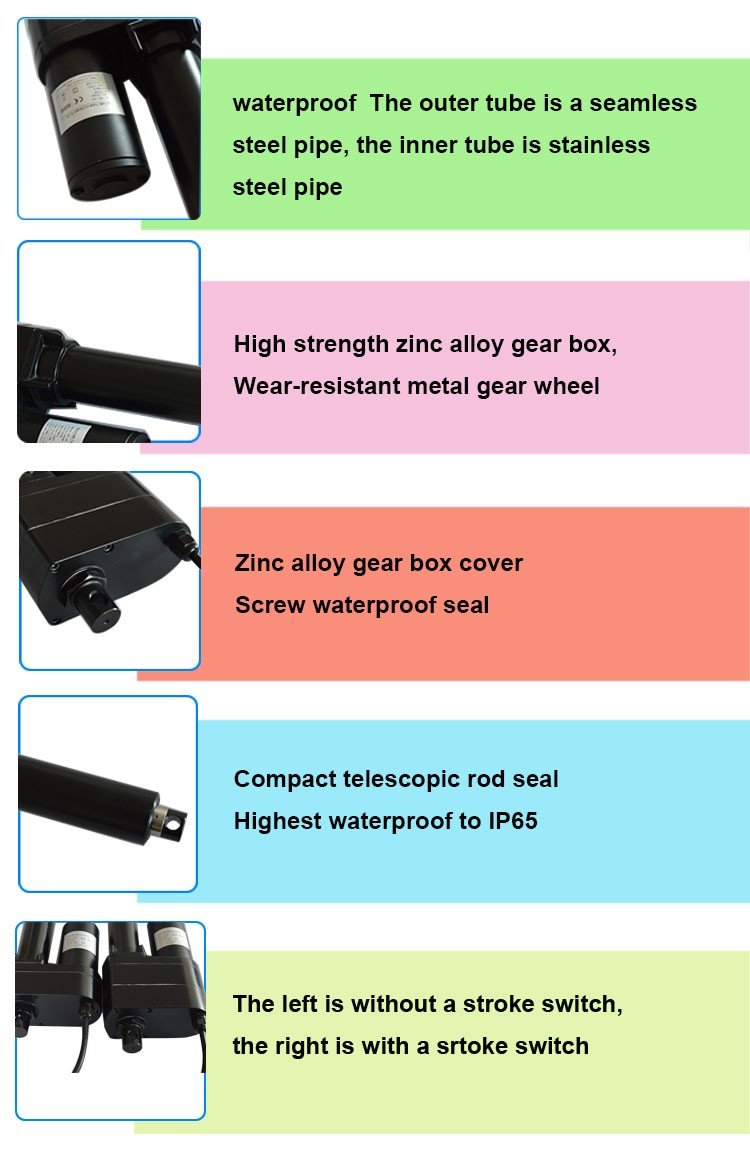

Linear Actuator with IP65, max load capacity 7000N. The linear actuators are Widely used in various types of industrial equipment, special vehicles, marine facilities .Plant protection machinery,Agricultural machinery,new energy vehicles,Cooking machine,Moving lighting,sweep vehicles,and other power devices, lifting devices.Attached are some photos for your reference. 16inch stroke IP65
DC Linear Actuator Price for Automobile Lift Tail Plate

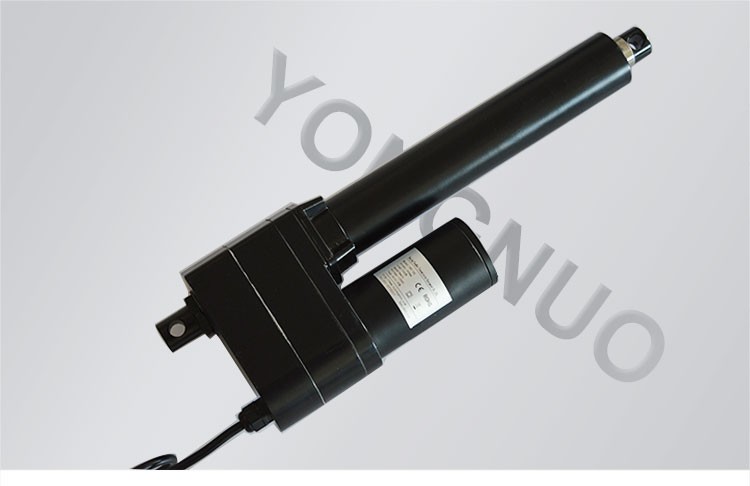

YNT-04 Linear Actuator technical data
LINEAR ACTUATOR YNT-04 TECHNICAL PARAMETER |
Model | YNT-04 | Input voltage | 12/24/36/48VDC |
Load capacity | Max7000N (push)/7000N(pull) | Stroke | Customized Stroke Available |
Free load speed | 30mm/s(1500N) | Operation temperature | -26℃~+65℃ |
Full load speed | 5mm/s (7000N) | Protection class | IP65 |
Duty cycle | 20% | Limit switch | Built-in |
Output Power | 150W | Noise level | ≤70dB |
Certificate | CE,ROHS | Minimum installation distance | Stroke+250mm |
Load Capacity and Speed performance: YNT-04 linear actuator support several load and speed based on different Metal gear ratio.
Dynamic Load Force | 7000N | 5000N | 3000N | 2000N | 1000N | 500N |
Static Load Force | 5mm/s | 10mm/s | 20mm/s | 30mm/s | 40mm/s | 50mm/s |
Speed with Load | 5mm/s | 10mm/s | 20mm/s | 30mm/s | 40mm/s | 50mm/s |
Input Voltage | 12/24/36/48VDC |
Fully Retracted Status The length while fully retracted (Installation Length) is Stroke length+250mm, e.g., the stroke is 200mm, the Installation Length would be 450mm (200+250mm). | Fully Extended Status The length while fully extended length is Stroke length*2+250mm, e.g., the stroke is 200mm, the fully extended Length would be 650mm (200*2+250mm). |

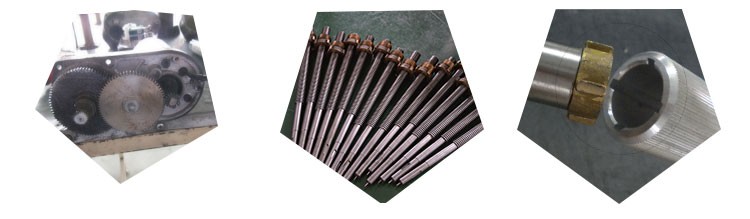

Core accessories

Mounting Drawing in millimeter:

Common Standard Installation length:Customization
Stroke length (mm) | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
Installation Length (mm) | 300 | 350 | 450 | 550 | 650 | 750 | 850 |
Weight (KG) | 4.61 | 4.99 | 5.75 | 6.51 | 7.27 | 8.03 | 8.79 |

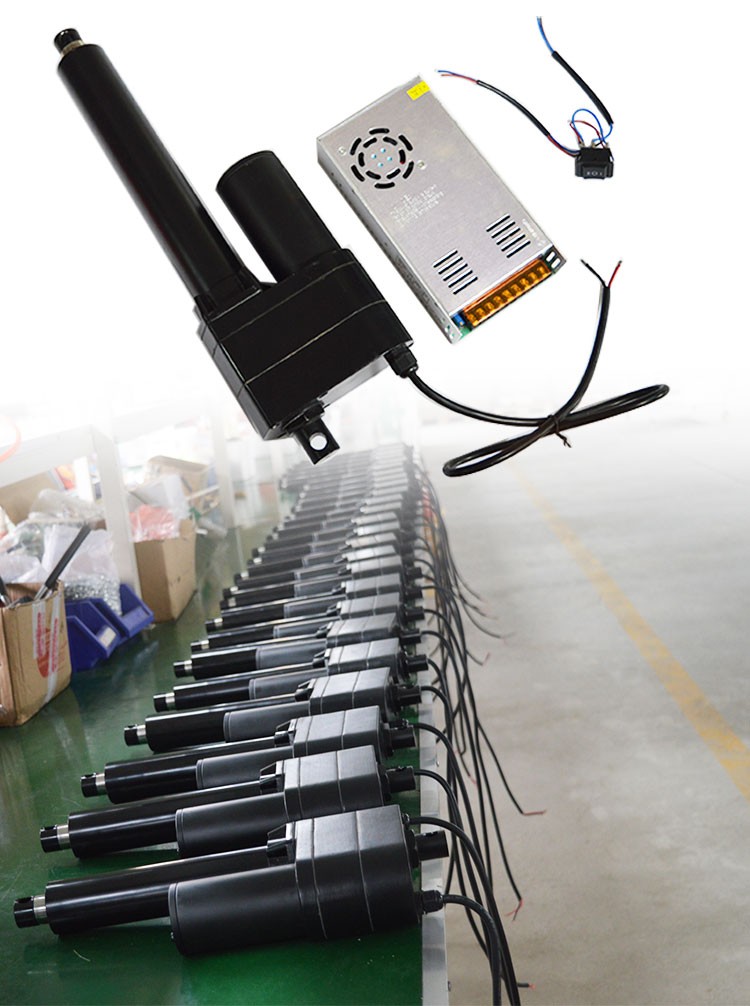

You may like accessories Switching power supply and Reversing switch

YNT-04 linear actuator With a wide range, good quality, reasonable prices and stylish designs,our products are extensively used in mining, electricity, transportation, ports, construction, medical equipment, firefighting equipment, furniture, military equipment, nuclear power plants, environmental protection, sewage treatment equipment (Decanter power) and other industries. YNT-04 linear actuator Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. YNT-04 linear actuator We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success! YNT-04 Linear Actuator — Quality Certification:ROHS and CE

Other linear actuators you may like:

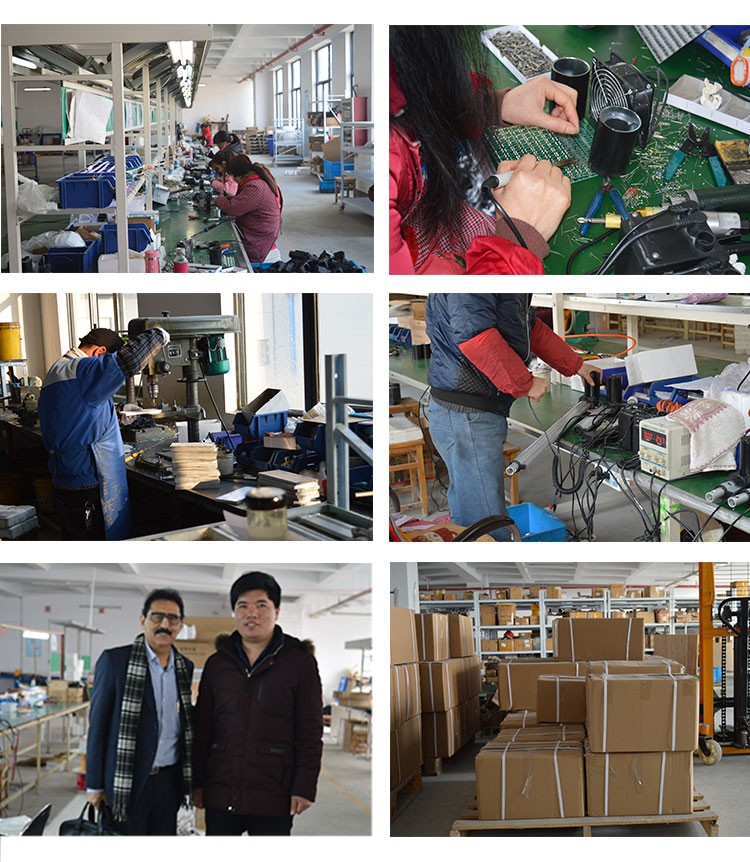

Welcome to YONGNUO! We specialize in manufacturing linear actuator,
Control Box and
Handset. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, Sanitation Sweeper, Special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success!

Q: Are you trading company or manufacturer ? A: We are factory. Q: How much is the packaging size? A: Packing size is in accordance with your order, your product specifications to determine the package size. Q: How much does shipping cost and what shipping methods do you support? A: Shipping cost is calculated based on the weight of the order and the distance it is travelling; Transport of large trucks to the seaport and international transport cooperation Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide customized Functions ? A: Yes, we can design and program as your requirements. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us
Contact us if you need more details on 16inch stroke Linear Actuator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Linear Actuator Price、Linear Actuator Price for Automobile Lift Tail Plate. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Linear Actuator Series
