Automatic Linear Chain Window Actuator ,Eelectric Pusher Rod

 High Quality Low Price 12/24/36/48V DC Tubular Linear Actuators                             Linear Actuator Description YNT-05 tubular actuator, with compact and flexible installation advantage, load from 500-1500N, load speed from 5-50mm/s,  besides, also with low noise operation. Therefore, it is widely used in small automatic industry, side window,open door etc. YNT-05 tubular linear actuator Technical Parameters:
1. 12V/24V / 36V/48 VDC DC permanent magnet motor;
2. Motor power: 45W
3. Maximum thrust up to 1500 N;
4. No load speed Example: 60mm/s(100N),30 mm / s (250N), 10 mm / s (1200N) ,5 mm / s (1500N)
5. High-strength metal shell protection motor and powder metallurgy gear;
6. Design beautiful and compact, small installation size;
7. Standard protection class: IP65
8. Built-in planetary motor gears
9. Color: silver
10. Standard 1.m straight cable, 20AWG
11. Standard stroke: 100mm,150mm,200mm,250mm,300mm,350mm,400 mm (Stroke can be customized)

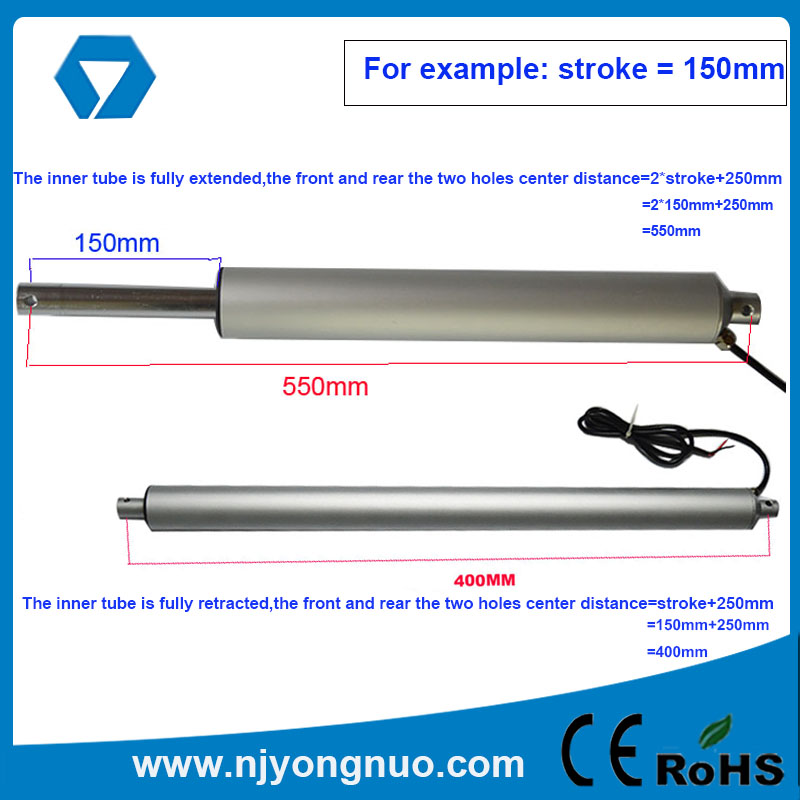

12. Standard minimum installation size: stroke + 250mm
13. Built-in stroke switch (not adjustable);
14. Strong wear-resistant nuts;
15. Maximum self-locking force 3000N
16. Maximum life: 50,000 times
17. Ambient temperature: -40 ° C to + 60 ° C
18. Noise level 55 dB (A), according to DS / EN ISO 3746, the drive is not loaded;
19. Certification: CE ROHS
20. Winding insulation class F (155 degrees). 21Certificate:CE,ROHS   Specification of different load force and speed by using different gear ratio

Load Capacity(N)	1500	1000	500
Static Load(N)	1500	1000	500
Speed at Full Load(mm/s)	5	10	27
Input(VDC)	12/24/36/48VDC

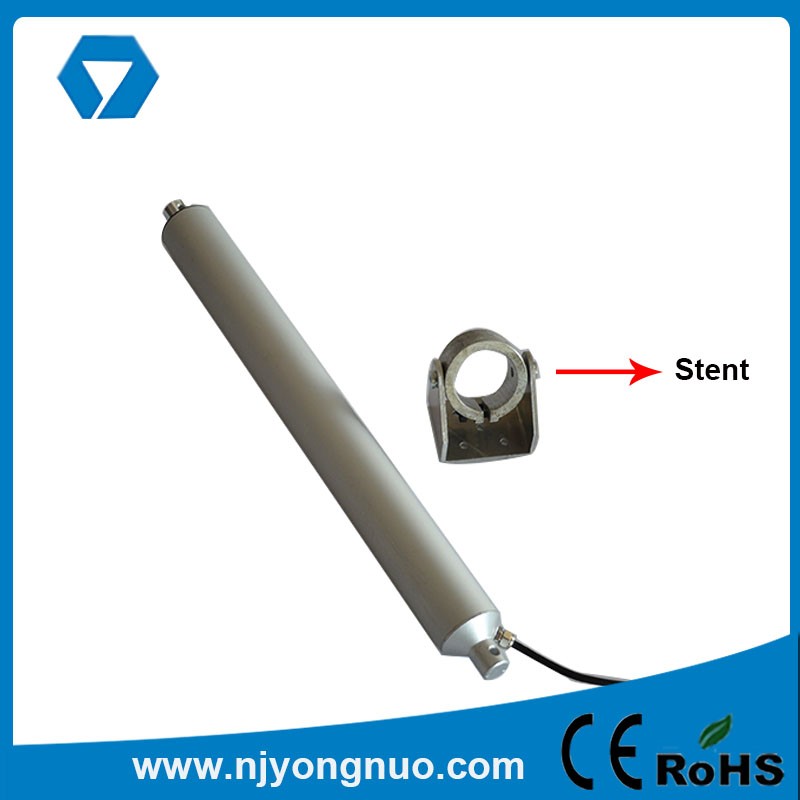

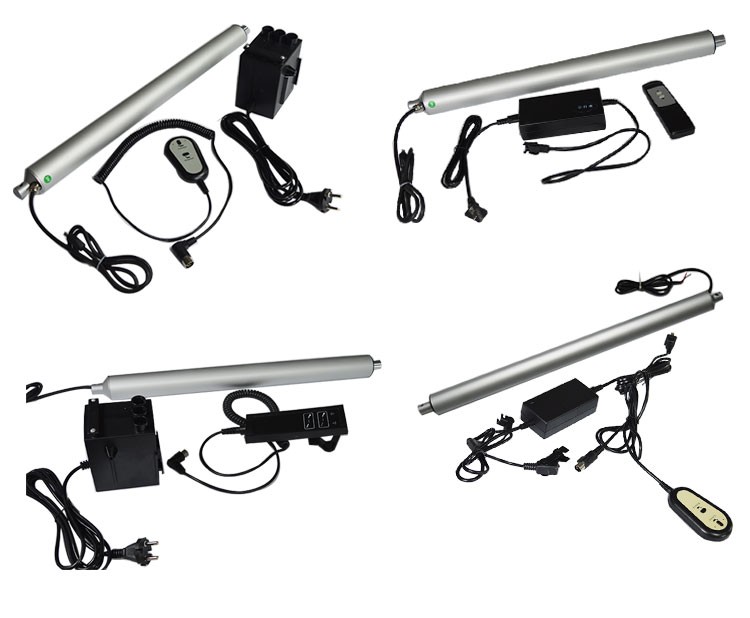

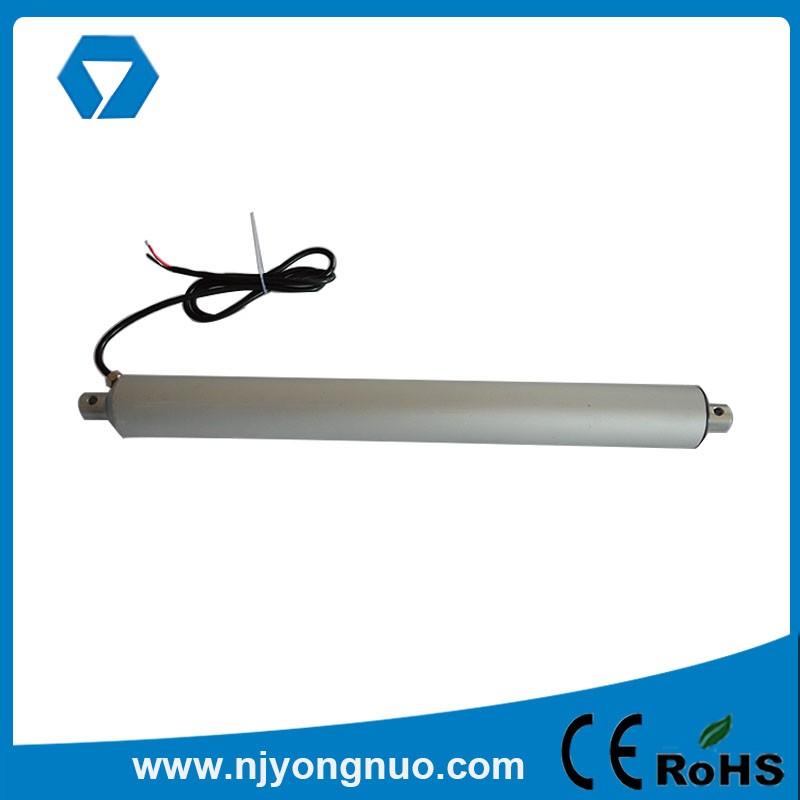

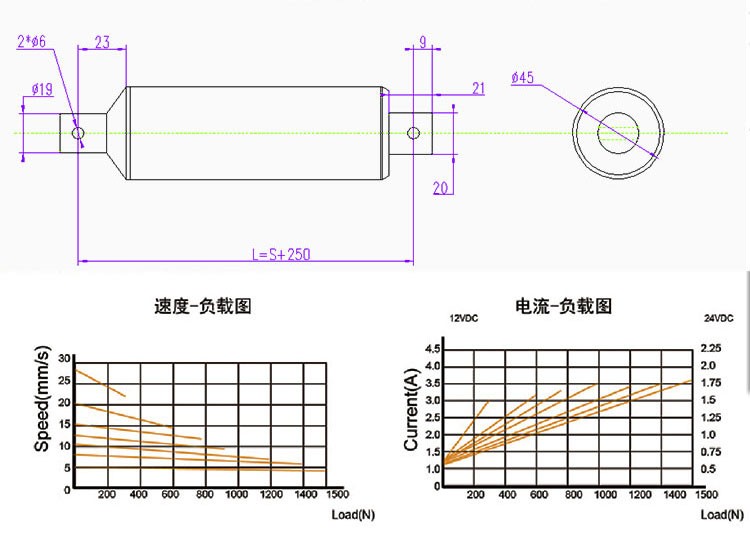

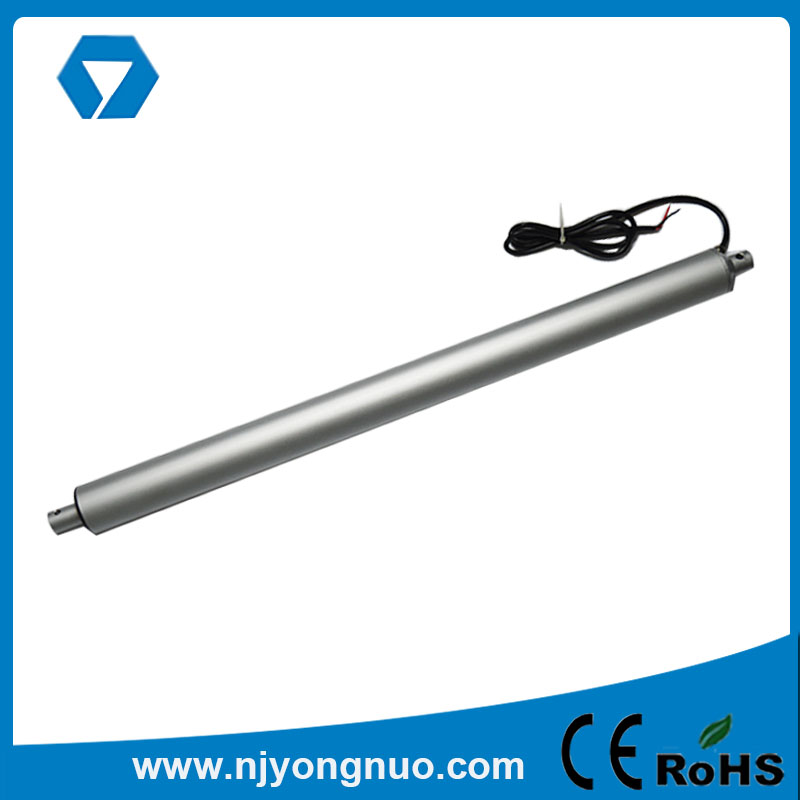

 Linear Actuator Drawing and Dimension      Product photo Automatic Linear Chain Window Actuator ,Eelectric Pusher Rod Control Box and power supply  and remote control         YNT-05 linear actuator— Quality Certification:ROHS and CE   Other linear actuators you may like:   Our Company: Welcome to YONGNUO!   We specialize in manufacturing linear actuator, control box and Handset. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, Sanitation Sweeper, Special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success! Company Photo   Q: Are you trading company or manufacturer ? A: We are factory. Q: How much is the packaging size? A: Packing size is in accordance with your order, your product specifications to determine the package size. Q: How much does shipping cost and what shipping methods do you support? A: Shipping cost  is calculated based on the weight of the order and the distance it is travelling; Transport of large trucks to the seaport and international transport cooperation Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide customized Functions ? A: Yes, we can design and program as your requirements.  Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us

Contact us if you need more details on Automatic Linear Chain Window Actuator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Eelectric Pusher Rod、linear actuator. If these products fail to match your need, please contact us and we would like to provide relevant information.
