Low noise 12v 24v dc micro Slider Linear Actuator for Leisure Sofa

YNT-02 Linear Actuator is a low-noise slider linear actuator designed specifically for massage chairs, electric sofas, electric beds, elderly chairs, home care equipment, fitness equipment, smart home and medical beds. Maximum push/pull force up to 6000N, Stroke can be customized

LINEAR ACTUATOR YNT-02 TECHNICAL PARAMETER
Model	YNT-02	Input voltage	12/24VDC
Load capacity	Max6000N (push)/6000N(pull)	Stroke	100,150,200,250,300,350,400mm (custom)
Free load speed	36mm/s (500N)	Operation temperature	-26℃~+65℃
Full load speed	4mm/s (6000N)	Protection class	IP54
Duty cycle	20%(2 minutes continuous use in 8 minutes)	Limit switch	Built-in
Output Power	60W	Noise level	≤50dB
Pot	Shanghai/Ningbo	Control mode	wired or wireless
Certificate	CE,ROHS	Minimum installation distance	A=155mm: L=S+155mm

    Load Capacity and Speed performance: YNT-02 linear actuator support several load and speed based on different  worm gear ratio.

Dynamic Load Force	4000N	1500N	500N
Static Load Force	4000N	1500N	500N
Speed with Load	5mm/s	18mm/s	35mm/s
Input Voltage	12/24VDC



Features: 1.Low noise 2.Using permanent magnet DC motor 3.Slider design, according to different chair frame for different custom programs 4.High precision, self-locking strong ability 5.Shell with high-intensity fire-resistant materials 6.Load and speed to meet different customer custom requirements 7.Maintenance is simple, maintenance-free, with controller

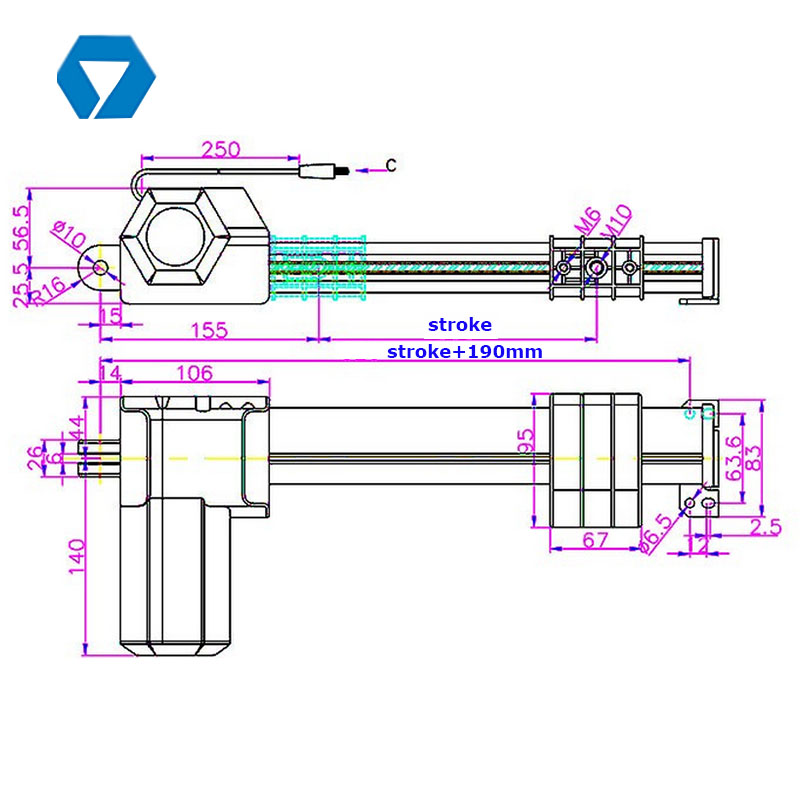

       Mounting Drawing in millimeter:     Material List:

DC drive motor

chassis

Screw

turbine

Slider

Aluminum alloy outer tube

    Electric elderly chairs, electric sofa, LCD TV lifts and other needs of the implementation of linear operation of the occasion, the product design novel, self-locking performance, no gas / oil, easy to install and simple. Multifunctional electric medical bed Other linear actuators you may like:

Model:YNT-01	Model:YNT-03	Model:YNT-06

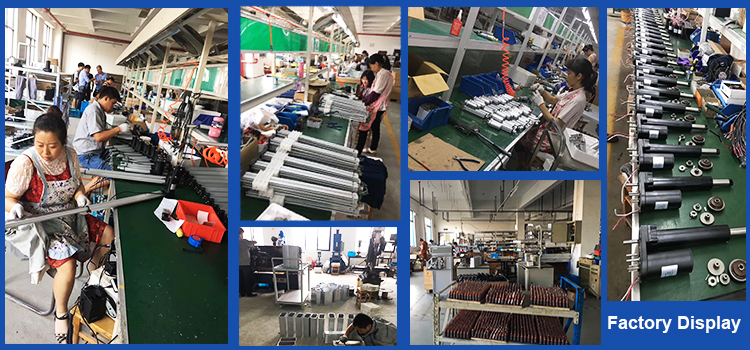

   Our Company: Welcome to YONGNUO!   Nanjing Yongnuo Transmission Equipment Co., Ltd specialize in manufacturing linear actuator, Control Box and Handset. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, Sanitation Sweeper, Special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success! Company Photo Q: Are you trading company or manufacturer ? A: We are factory.     Q: How long is your delivery time? A: Generally it is 3-7 days if the goods are in stock. or it is 7-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide customized Functions ? A: Yes, we can design and program as your requirements.  Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us
