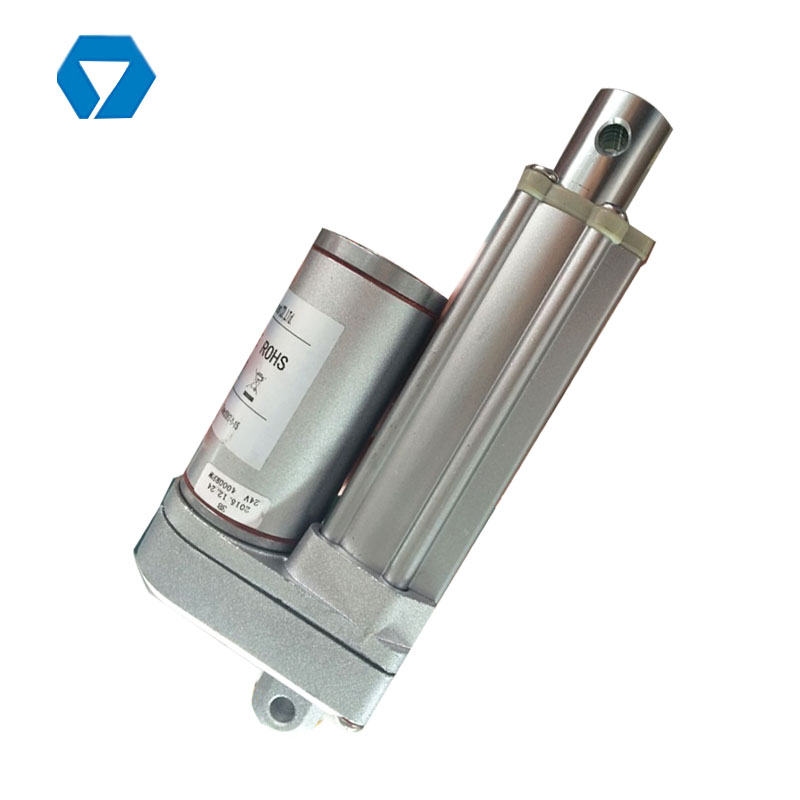

The Linear Actuator
is waterpoof and design is novel, small size, high precision, fully synchronized, self-locking performance is good, the motor direct drive, do not need the pipeline gas source and oil. now a large number for the production line, sanitation sweeping vehicles, car electronic throttle, electric Window, car, military, stage, textile, sewage treatment and other applications need to run a straight line of the occasion.
|LINER ACTUATOR YNT-03 TECHNICAL PARAMETER|
|Model ||YNT-03 ||Input voltage ||12/24/36/48VDC |
|Load capacity ||Max1200N(push)/1200N(pull) ||Stroke ||Customized Stroke Available |
|Free load speed ||45mm/s (100N) ||Operation temperature ||-26℃~+65℃ |
|Full load speed ||5mm/s (1200N) ||Protection class ||IP65 |
|Duty cycle ||20%(2 minutes continuous use in 8minutes) ||Limit switch ||Built-in |
|Output Power ||30w ||Noise level ||<=70dB |
|Pot ||Shanghai/Ningbo ||Control mode ||wired or wireless |
|Certificate ||CE, RoHS ||Minimum installation distance ||stroke+105mm |
Load Capacity and Speed performance: YNT-03 linear actuator support several load and speed based on different Metal gear ratio.
|Dynamic Load Force ||1200N ||750N ||400N ||300N ||200N ||100N ||50N |
|Static Load Force ||5mm/s ||10mm/s ||20mm/s ||30mm/s ||40mm/s ||50mm/s ||60mm/s |
|Speed with Load ||5mm/s ||10mm/s ||20mm/s ||30mm/s ||40mm/s ||50mm/s ||60mm/s |
|Input Voltage ||12/24/36/48VDC |
|DC drive motor ||Screw ||Nuts |
|Aluminum alloy outer tube ||Reducer gearbox ||Micro Switch |
Fully Retracted Status
The length while fully retracted (Installation Length) is Stroke length+105mm,
e.g., the stroke is 100mm, the Installation Length would be 205mm (100+105mm).
Fully Extended Status
The length while fully extended length is
e.g., the stroke is 100mm, the fully extended Length would be 305mm (100*2+105mm).
Mounting Drawing in millimeter:
Common Standard Installation length:Customization
|Stroke length (mm) ||50 ||100 ||200 ||300 ||400 ||500 ||600 |
|Installation Length (mm) ||155 ||205 ||305 ||405 ||505 ||605 ||705 |
|Weight (KG) ||0.55 ||0.7 ||1 ||1.3 ||1.6 ||1.9 ||2.2 |
Inner Tube Slot connector
Optional x6.5mm,x6.3mm slot
|We can change the diameter of the hole according to your installation size |
aluminum alloy inner tube(standard),Can be customized stainless steel inner tube Assembly Image We also accept bracket & holder customization, please tell us your requirements, we will give out a 3D drawing and a good price for you. Control Box
and power supply and remote control
