6000N DC 24v motor chicken door automatic linear actuator for smart kitchen,digital camera lifting device,Hatching machine
Product Description
Applicable scope: 1.Electric care bed, electric operating bed, electric traction bed, electric massage chair, electric dental chair, electric wheelchair, Medical equipment. 2.electric lift cabinet, LCD TV lift frame, bedside cabinet LCD TV intelligent hiding device, camera electric lift rod, wedding props, smart home
Specification of different load force and speed by using different gear ratio.(Customizable)
Base
| Stroke length | Customizable |
| Free load max speed | 30mm/s(500N) |
| Full load max speed | 5mm/s(6000N) |
| Limit switch | Built-in |
| Duty cycle | 20% |
| Outer tube | Aluminum tube |
| Inner tube | Aluminum tube |
| End clevis | Aluminum alloy |
| IP grade | IP54 |
| Operating temperature | -26℃~65℃ |
| Standard | CE,ROHS |
| Load capacity (N) | 6000 | 2000 | 1000 | 800 | 600 | 500 |
| Static load (N) | 6000 | 2000 | 1000 | 800 | 600 | 500 |
| Speed at full load (mm/s) | 5 | 12 | 21 | 26 | 29 | 30 |
| Input (VDC) | 12/24 | |||||
Base

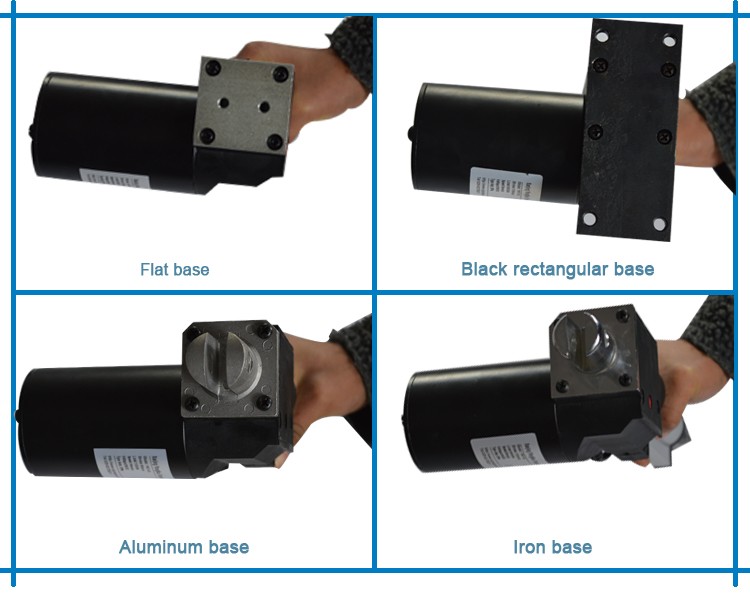

 | Conventional stent(YN-01) 1. Material: Steel A3 (Q235) 2. Size: 58*28*40mm 3. Hold Load 600Kg
We also accept bracket & holder customization, please tell us your requirements, we will give out a 3D drawing and a good price for you. |
|
1.Q: Are you trading company or manufacturer ? A: We are factory. 2.Q: How much is the packaging size? A: Packing size is in accordance with your order, your product specifications to determine the package size. 3.Q: How much does shipping cost and what shipping methods do you support? A: Shipping cost is calculated based on the weight of the order and the distance it is travelling; Transport of large trucks to the seaport and international transport cooperation 4.Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. 5.Q: Do you provide customized Functions ? A: Yes, we can design and program as your requirements. 6.Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, please feel free to contact us
Contact us if you need more details on 24v motor
