Hand-held linear actuator mini size 12v actuator for curtain motor, blind motor,Door automatically

Product Description

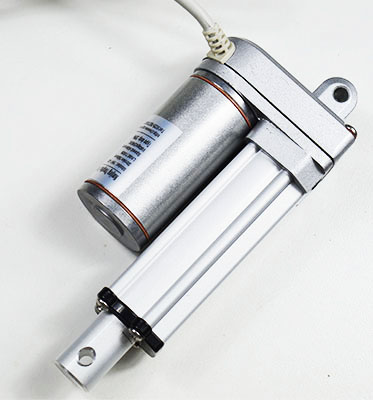

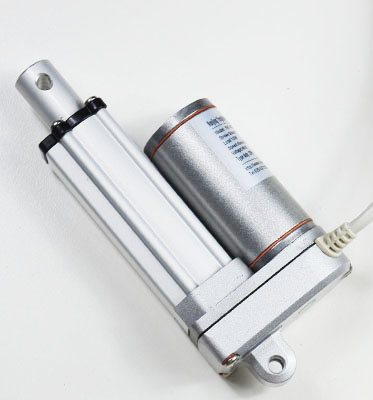

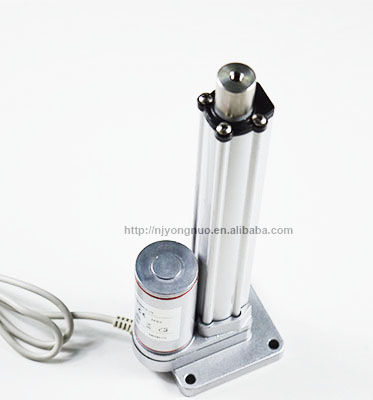

Product Description YNT-03 Linear Actuator brush DC motor, short installation distance, compact result, IP65 waterproof and dustproof, widely used in industrial and agricultural machinery, vehicles, doors and windows, etc.
Model
YNT-03
Power
30W
Brand
YONGNUO
Color
Silver/Black
IP Grade
IP65
Stroke
Customized Stroke Available
Duty cycle
20%

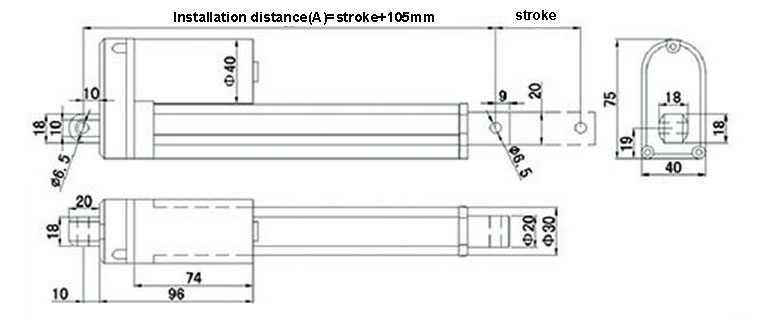

Minimum installation distance
stroke+105mm
Noise level
<=70dB

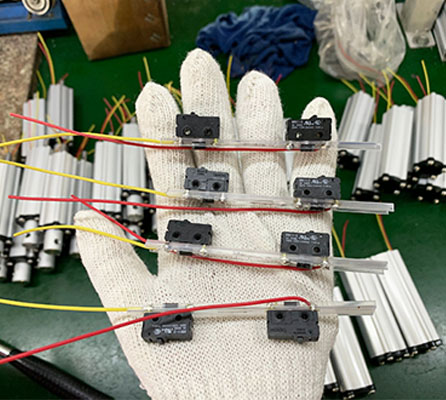

Limit switch
Built-In
Feedback signal options
Potentiometer
Operation temperature
-30℃~+65℃
Dynamic Load Force(N)
1200
750
400
300
200
100
50
No load speed (Mm/s)
5
10
20
25
40
50
60
Full load speed (Mm/s)
4
8
16
20
32
40
48
Voltage(VDC)
12V/24V/36V/48V DC

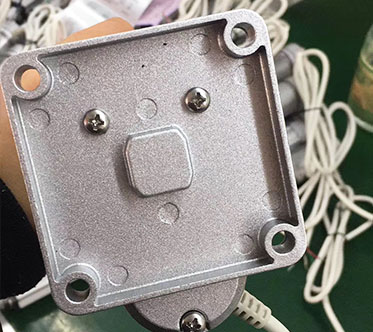

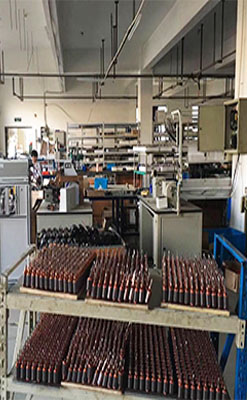

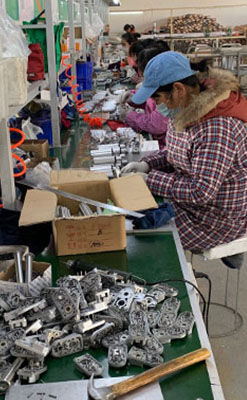

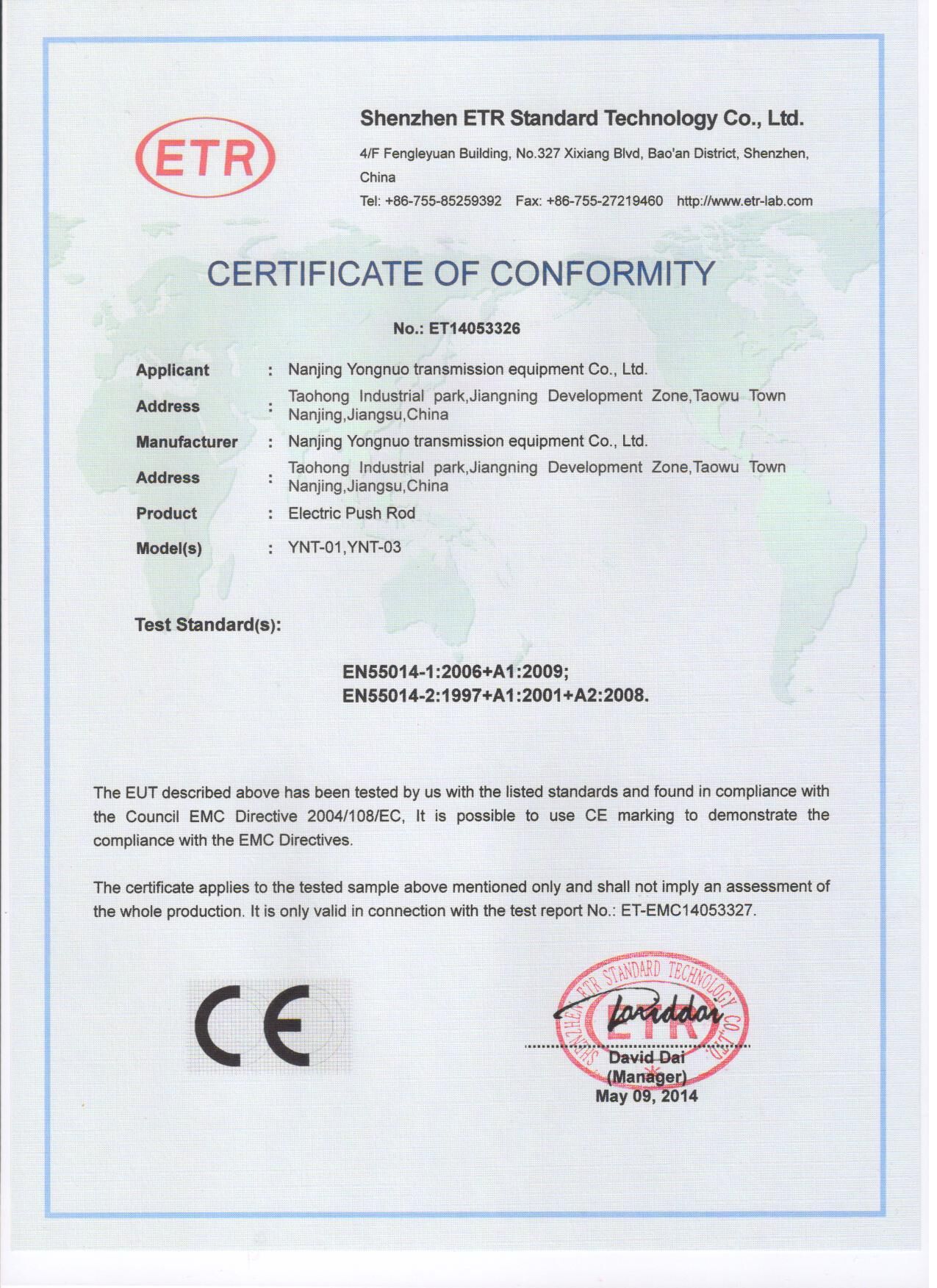

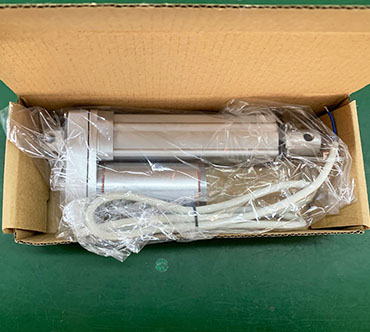

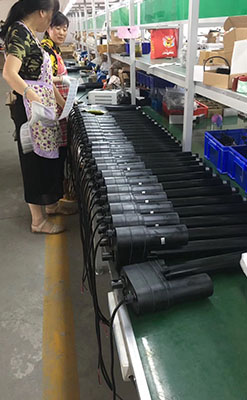

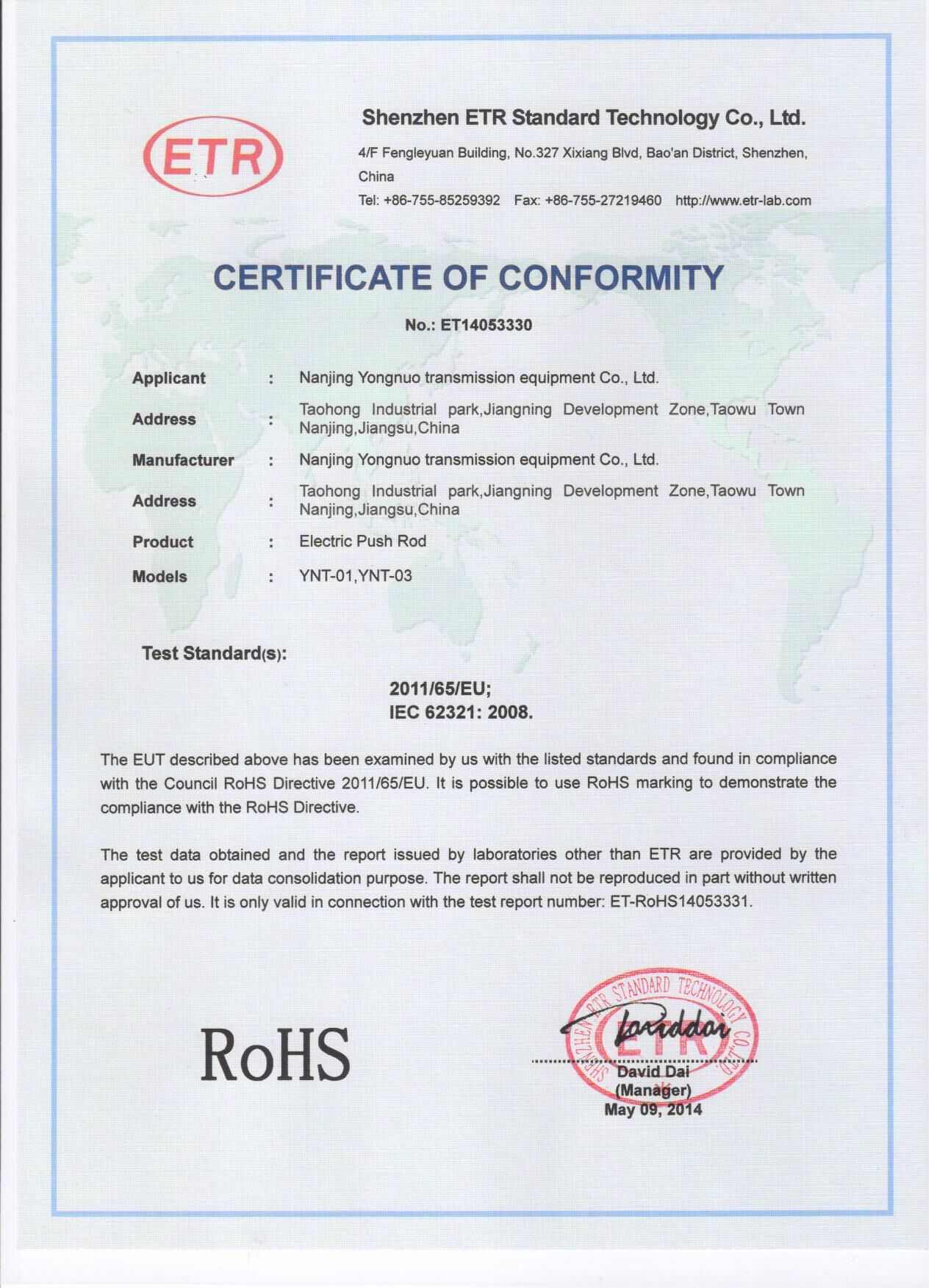

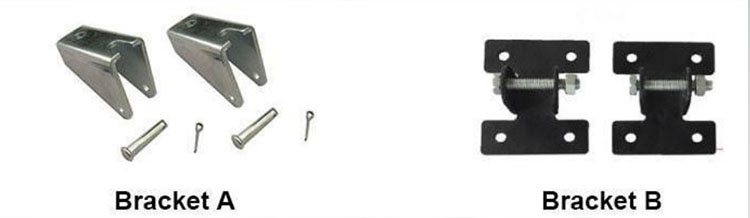

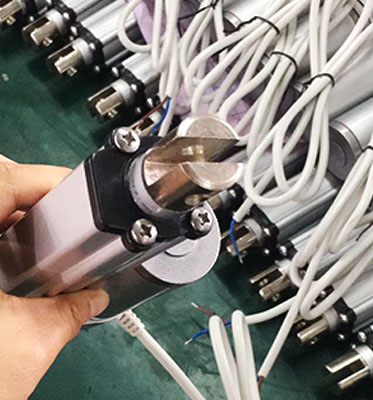

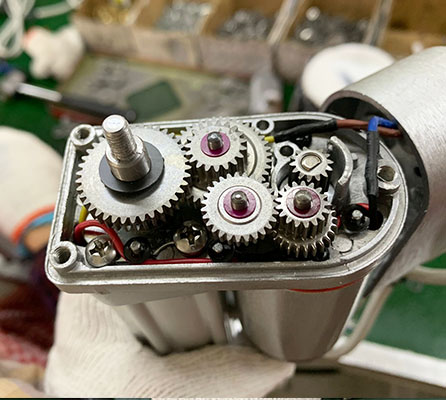

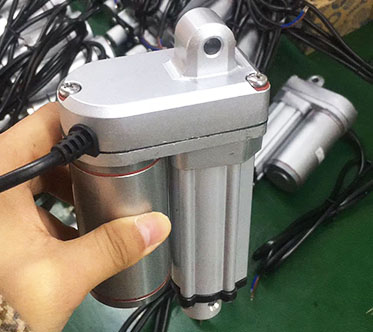

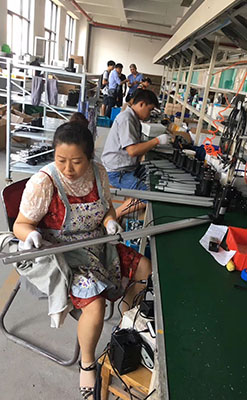

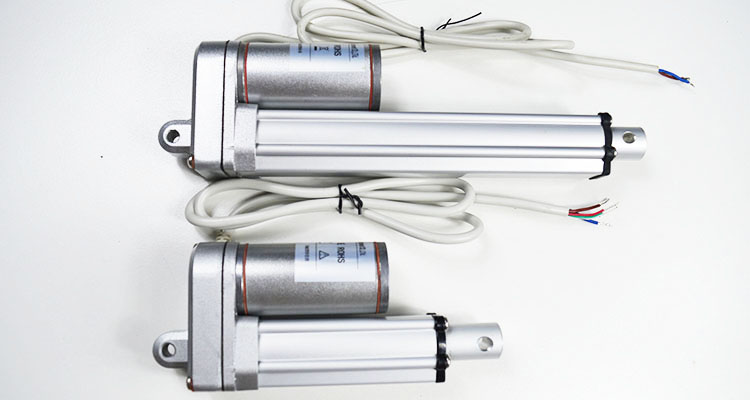

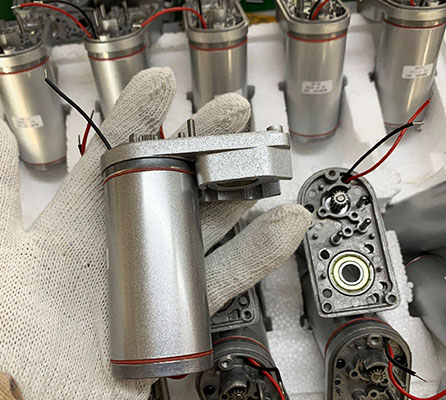

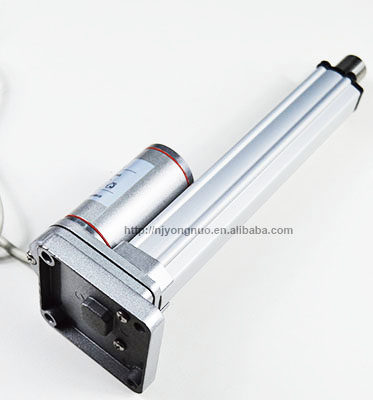

Detailed Images Front Mounting Hole Options Rear Base Options Accessories options Material Title goes here. Title goes here. Title goes here. DC drive motor,Aluminum alloy inner and outer tube(Can be customized stainless steel inner tube) Aluminum alloy Reducer gearbox,Wear-resistant metal gear wheel,T-type screw +Plastic nuts Compact telescopic rod seal,High waterproof to IP65,surface sandblasting treatment,And Oxidation treatment,smooth,easy to clean Related Products $16 - $ 22 Pieces 1 Pieces (MOQ) $105 - $120 Pieces 1 Pieces (MOQ) $28 - $ 35 Pieces 1 Pieces (MOQ) Certificate Packing&Shipping Company Introduction FAQ Q: Are you trading company or manufacturer ? A: We are factory. Q: How much is the packaging size? A: Packing size is in accordance with your order, your product specifications to determine the package size. Q: How much does shipping cost and what shipping methods do you support? A: Shipping cost is calculated based on the weight of the order and the distance it is travelling; Transport of large trucks to the seaport and international transport cooperation Q: How long is your delivery time? A: Generally it is 3-7 days if the goods are in stock. or it is 7-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide customized Functions ? A: Yes, we can design and program as your requirements. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us
