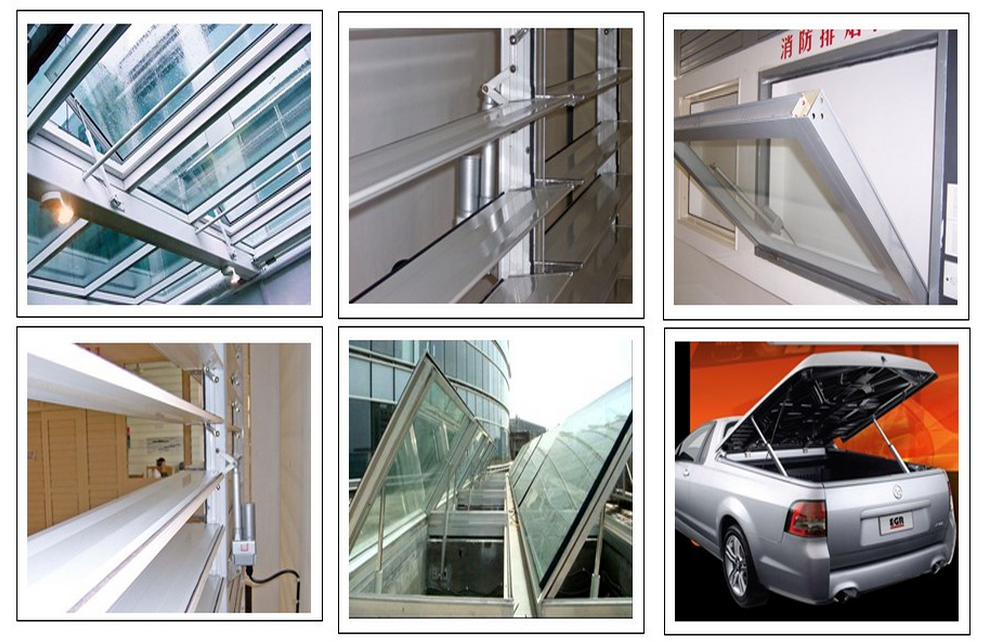

Product&Applications YNT-05 Tubular Linear Actuators with a small size, low noise design, installed in a limited installation space. Applicable to a variety of home office areas, such as: window electric putter, car tailgate electric putter, etc. 1.green, intelligent, energy-saving modern high-rise buildings, such as curtain wall windows 2. Fire-fighting windows for fire fighting and ventilation on the floor 3. High window: the installation of the window position is too high or too far, alone can not touch the windows 4.building automatic control, intelligent home control 5.farm Linear Actuator
, animal husbandry linear actuator
High Quality Low Price 12/24/36/48V DC Tubular Linear Actuators Linear Actuator Description YNT-05 tubular actuator, with compact and flexible installation advantage, load from 500-1500N, load speed from 5-50mm/s, besides, also with low noise operation. Therefore, it is widely used in small automatic industry, side window,open door etc. Linear Actuator Specification Model No.YNT-05 Voltage:12V/24/36/48V Diameter:45mm Stroke:50-1500mm(you can choose as you want) Installation Dimension:L=S+250mm Max. Load:1500N Speed:5~50mm/s Noisy Level:≤65dB IP Grade:IP65 Color:silver white Limit Switch:Built in (Inner) Operation Temperature:-26℃~65℃ Certificate:CE,ROHS Specification of different load force and speed by using different gear ratio
|Load Capacity(N) ||1500 ||1000 ||500 ||100 |
|Static Load(N) ||1500 ||1000 ||500 ||100 |
|Speed at Full Load(mm/s) ||5 ||10 ||27 ||50 |
|Input(VDC) ||12/24/36/48VDC |
Linear Actuator Drawing and Dimension

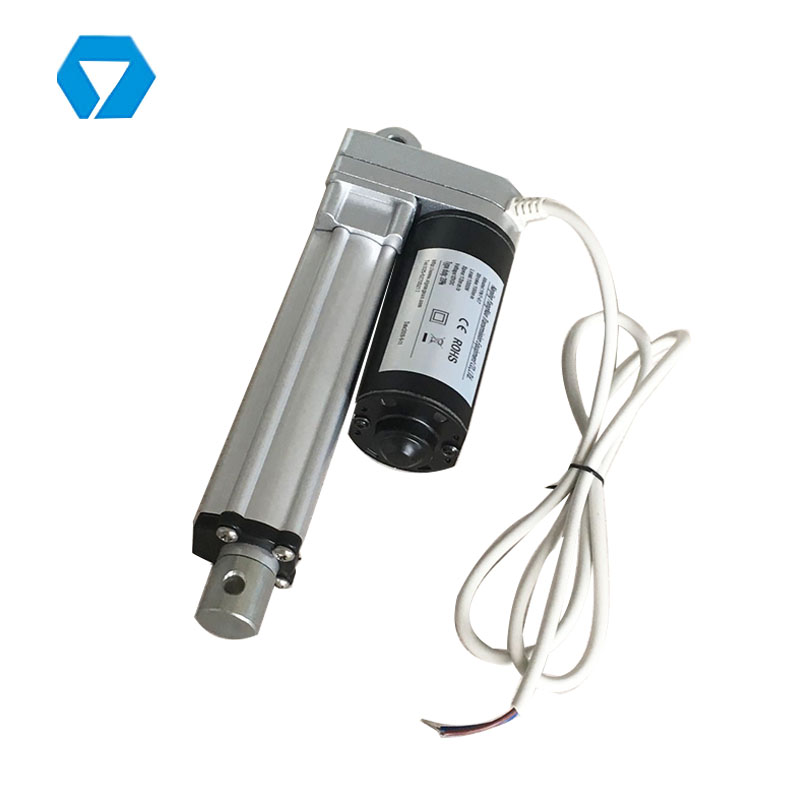

Product photo low voltage telescoping electric pistons linear actuator 12v 10 inch stroke Control Box
and power supply and remote control
You May like:
| || || |

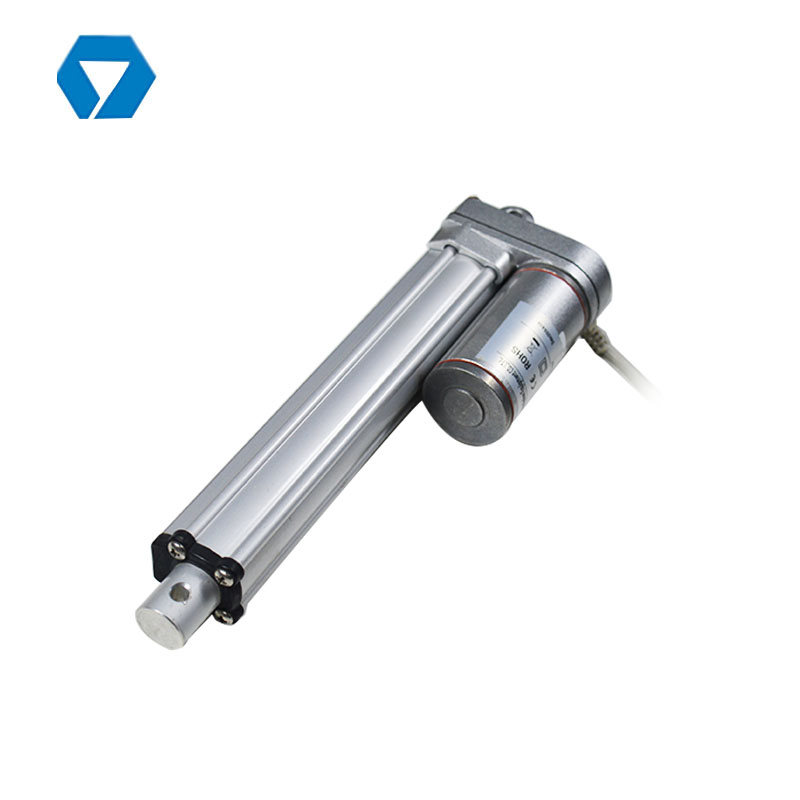

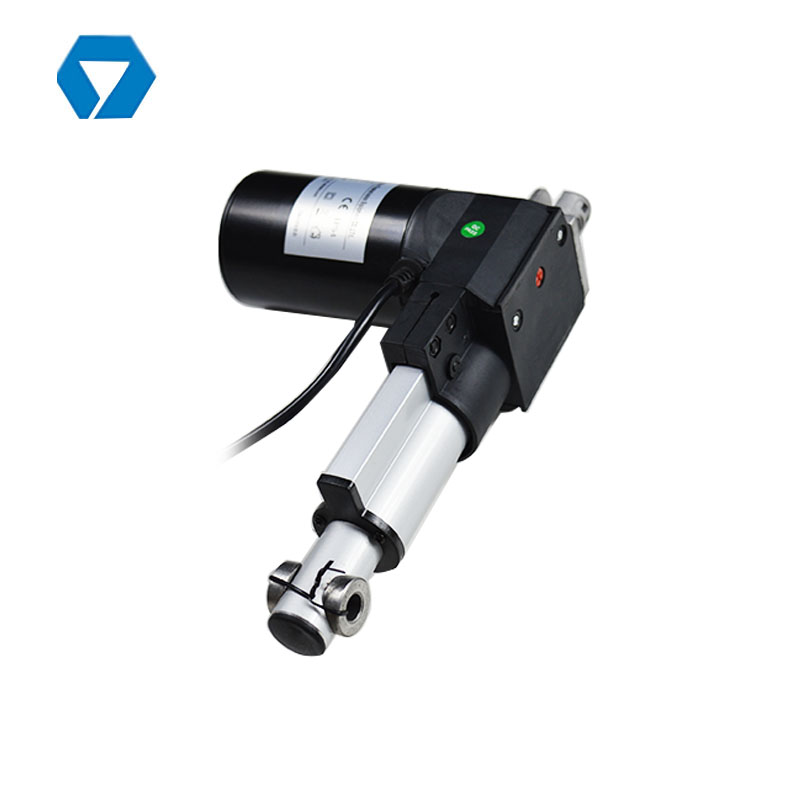

|Model:YNT-03 || Model:YNT-01 || Model:YNT-04 |
