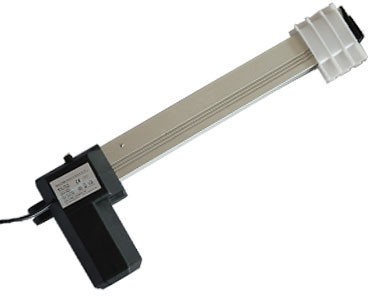

24V DC Motor Pulse signal Slow Linear Actuator for Lift Wheelchair

Product Description

YNT-02 Linear Actuator is a low-noise slider linear actuator designed specifically for massage chairs, electric sofas, electric beds, elderly chairs, home care equipment, fitness equipment, smart home and medical beds. Maximum push/pull force up to 6000N, Stroke can be customized    24V DC Motor Pulse signal Slow Linear Actuator for Lift Wheelchair

LINEAR ACTUATOR YNT-02 TECHNICAL PARAMETER

Model

YNT-02

Input voltage

12/24VDC

Load capacity

Max6000N (push)/6000N(pull)

Stroke

100,150,200,250,300,350,400mm (custom)

Free load speed

36mm/s (500N)

Operation temperature

 -26℃~+65℃

Full load speed

4mm/s (6000N)

Protection class

IP54

Duty cycle

20%(2 minutes continuous use in 8 minutes)

Limit switch

Built-in

Output Power

60W

Noise level

≤50dB

Pot

Shanghai/Ningbo

Control mode

wired or wireless

Certificate

CE,ROHS

Minimum installation distance

A=155mm: L=S+155mm

    Load Capacity and Speed performance: YNT-02 linear actuator support several load and speed based on different  worm gear ratio.

Dynamic Load Force

4000N

1500N

500N

Static Load Force

4000N

1500N

500N

Speed with Load

5mm/s

18mm/s

35mm/s

Input Voltage

12/24VDC





Features:

1.Low noise

2.Using permanent magnet DC motor

3.Slider design, according to different chair frame for different custom programs

4.High precision, self-locking strong ability

5.Shell with high-intensity fire-resistant materials

6.Load and speed to meet different customer custom requirements

7.Maintenance is simple, maintenance-free, with controller

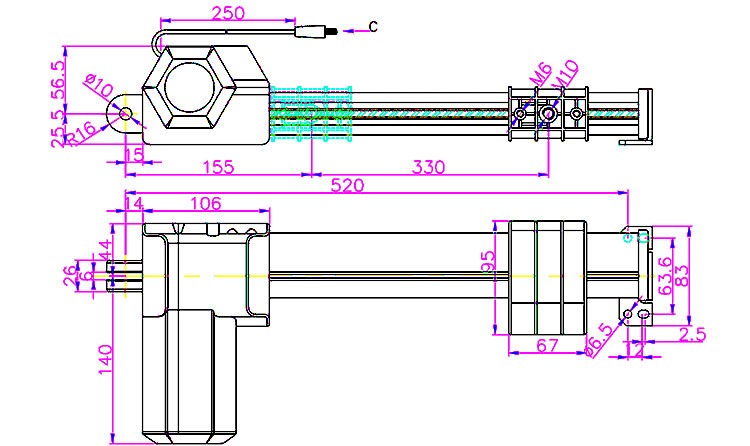

       Mounting Drawing in millimeter:     Material List:
DC drive motor chassis Screw
turbine Slider Aluminum alloy outer tube

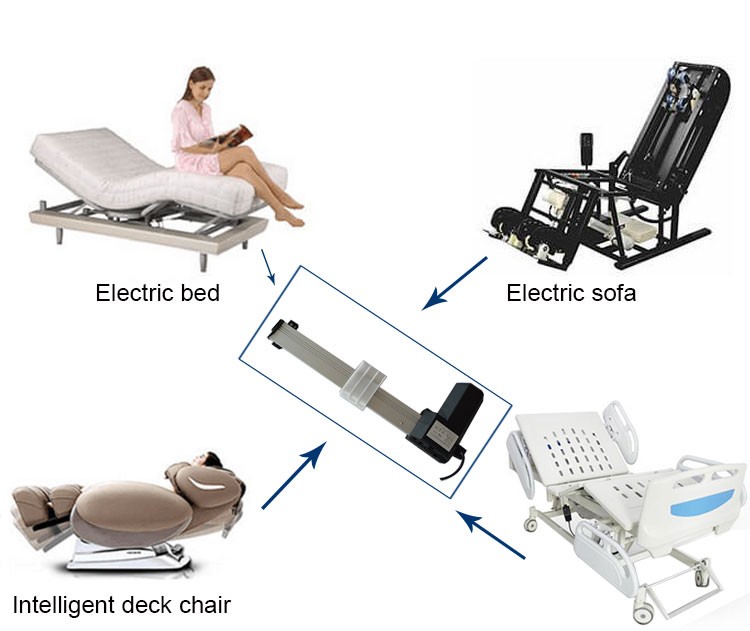

    Electric elderly chairs, electric sofa, LCD TV lifts and other needs of the implementation of linear operation of the occasion, the product design novel, self-locking performance, no gas / oil, easy to install and simple. Multifunctional electric medical bed Other linear actuators you may like:

 YNT-02 linear actuator— Quality Certification:ROHS and CE   Our Company: Welcome to YONGNUO!   Nanjing Yongnuo Transmission Equipment Co., Ltd specialize in manufacturing linear actuator, Control Box and Handset. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, Sanitation Sweeper, Special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success! Company Photo Q: Are you trading company or manufacturer ? A: We are factory. Q: How much is the packaging size? A: Packing size is in accordance with your order, your product specifications to determine the package size. Q: How much does shipping cost and what shipping methods do you support? A: Shipping cost  is calculated based on the weight of the order and the distance it is travelling; Transport of large trucks to the seaport and international transport cooperation Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide customized Functions ? A: Yes, we can design and program as your requirements.  Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us

Contact us if you need more details on 24V DC Motor Linear Actuator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Pulse signal Linear Actuator、 Slow Linear Actuator for Lift Wheelchair. If these products fail to match your need, please contact us and we would like to provide relevant information.
