Popular 450mm 12v tubular electric linear actuator for window opener shutter closer
Product Description
High Quality Low Price 12/24/36/48V DC Tubular Linear Actuators Linear Actuator Description YNT-05 tubular actuator, with compact and flexible installation advantage, load from 500-1500N, load speed from 5-27mm/s, tube diameter with the range45mm, besides, also with low noise operation. Therefore, it is widely used in small automatic industry, side window, etc. Linear Actuator Specification Model No.YNT-05 Voltage:12V/24/36/48V Tube Diameter:45mm Stroke:50-700mm(you can choose as you want) Installation Dimension:L=S+250 Max. Load:1500N Speed:5~27mm/s Noisy Level:≤65dB IP Grade:IP65 Color:silver white Limit Switch:Built in (Inner) Operation Temperature:-26℃~65℃ Certificate:CE,ROHS Specification of different load force and speed by using different gear ratio

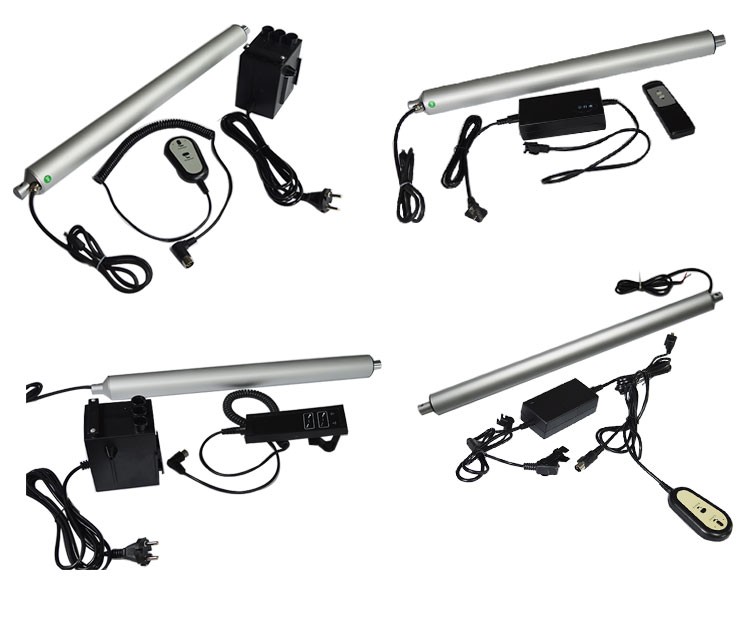

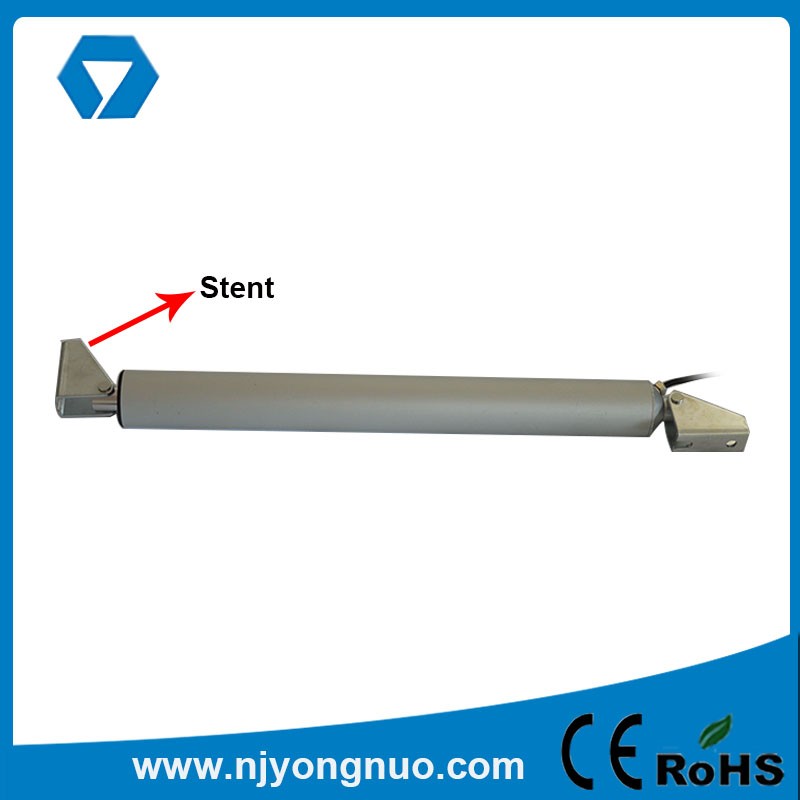

Linear Actuator Drawing and Dimension Product photo Control Box and power supply and remote control Application Photo It has a linear design of the appearance, with a compact size and strong thrust characteristics, very suitable for industrial areas in the installation of limited space, such as the use of automatic kitchen cabinets and kitchenware, also applies to the building window, various types Of the flat shutters, glass shutters, spindle blinds and multi-control electric row of windows and other window type. The most prominent advantage in the field of the window is its strong thrust, high strength & high wear-resistant material selection, high-precision parts processing, advanced shell design concept, creating high load capacity, dust-proof, Low noise, maintenance-free, long-life quality products, can work in harsh industrial environments. (Support customization) The use of aluminum alloy shell, connector can be customized, DC circuit, very suitable for installation in modern large building windows above, can be installed at the same time two windows, and has a synchronization function.
YNT-05 linear actuator— Quality Certification:ROHS and CE Other linear actuators you may like:
Our Company: Welcome to YONGNUO! We specialize in manufacturing linear actuator, control box and Handset. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, Sanitation Sweeper, Special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success! Company Photo Q: Are you trading company or manufacturer ? A: We are factory. Q: How much is the packaging size? A: Packing size is in accordance with your order, your product specifications to determine the package size. Q: How much does shipping cost and what shipping methods do you support? A: Shipping cost is calculated based on the weight of the order and the distance it is travelling; Transport of large trucks to the seaport and international transport cooperation Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide customized Functions ? A: Yes, we can design and program as your requirements. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us Contact information Contact us if you need more details on Popular 450mm 12v Linear Actuator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about tubular electric linear actuator 、 linear actuator For Window opener shutter closer. If these products fail to match your need, please contact us and we would like to provide relevant information.
Load Capacity(N) | 1500 | 1000 | 500 |
Static Load(N) | 1500 | 1000 | 500 |
Speed at Full Load(mm/s) | 5 | 10 | 27 |
Input(VDC) | 12/24/36/48VDC |
Window Opener | TV Lift |
YNT-03 Linear Actuator | YNT-01 Linear Actuator | YNT-06 Electric Lift Column |
