Cow or poultry feeding DC electric linear actuator 48V 7000N load force

Product Description

Nanjing Yongnuo Transmission Equipment Co., Ltd.. We are one designer and manufacturer of linear actuators in China for years. Now we offer some Metal gear type Linear Actuator with IP65,  max load capacity 7000N. The linear actuators are Widely used in various types of industrial equipment, special vehicles, marine facilities .Plant protection machinery,Agricultural machinery,new energy vehicles,Cooking machine,Moving lighting,sweep vehicles,and other power devices, lifting devices.Attached are some photos for your reference. YNT-04 Linear Actuator  technical data

LINEAR ACTUATOR YNT-04 TECHNICAL PARAMETER

Model

YNT-04

Input voltage

12/24/36/48VDC



Load capacity

Max7000N (push)/7000N(pull)

Stroke

Customized Stroke Available



Free load speed

30mm/s(1500N)

Operation temperature

 -26℃~+65℃



Full load speed

5mm/s (7000N)

Protection class

IP65



Duty cycle

20%

Limit switch

Built-in



Output Power

150W

Noise level

≤70dB



Certificate

CE,ROHS

Minimum installation distance

Stroke+250mm



    Load Capacity and Speed performance: YNT-04 linear actuator support several load and speed based on different Metal gear ratio.
Dynamic Load Force 7000N 5000N 3000N 2000N 1000N 500N
Static Load Force 5mm/s 10mm/s 20mm/s 30mm/s 40mm/s 50mm/s
Speed with Load 5mm/s 10mm/s 20mm/s 30mm/s 40mm/s 50mm/s
Input Voltage 12/24/36/48VDC


Fully Retracted Status

The length while fully retracted (Installation Length) is

Stroke length+250mm,

e.g., the stroke is 200mm, the Installation Length would be 450mm (200+250mm).

Fully Extended Status

The length while fully extended length  is
Stroke length*2+250mm,
e.g., the stroke is 200mm, the fully extended Length would be 650mm (200*2+250mm).

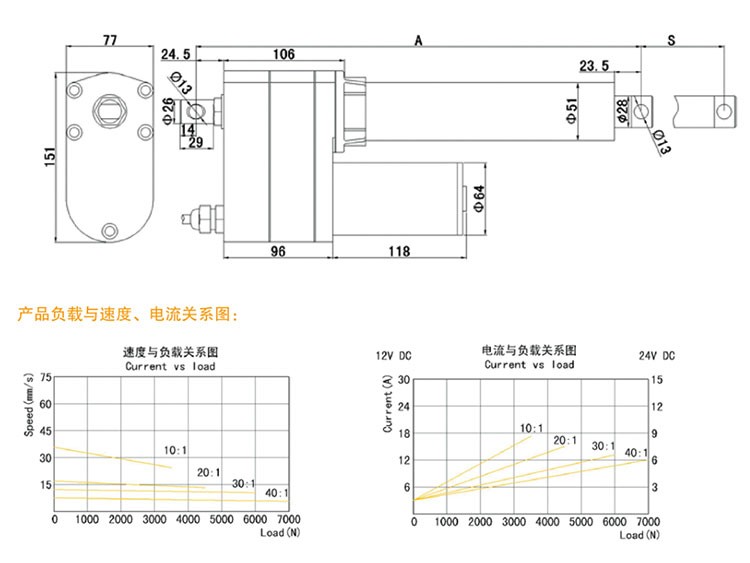

  Mounting Drawing in millimeter:     Common Standard Installation length:Customization
Stroke length (mm) 50 100 200 300 400 500 600
Installation Length (mm) 300 350 450 550 650 750 850
Weight (KG) 4.61 4.99 5.75 6.51 7.27 8.03 8.79

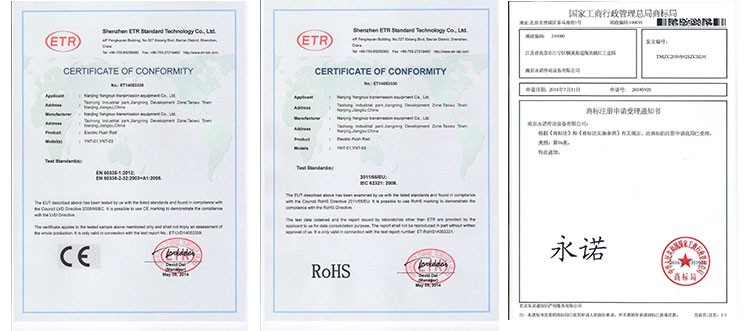

    You may like accessories   Switching power supply and Reversing switch  YNT-04 linear actuator With a wide range, good quality, reasonable prices and stylish designs,our products are extensively used in mining, electricity, transportation, ports, construction, medical equipment, firefighting equipment, furniture, military equipment, nuclear power plants, environmental protection, sewage treatment equipment (Decanter power) and other industries. YNT-04 linear actuator Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.   YNT-04 linear actuator We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!   YNT-04 Linear Actuator — Quality Certification:ROHS and CE        Other linear actuators you may like:

YNT-03 Linear Actuator YNT-01 Linear Actuator YNT-06 Electric Lift Column
Welcome to YONGNUO!   We specialize in manufacturing linear actuator, Control Box and Handset. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, Sanitation Sweeper, Special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success! Q: Are you trading company or manufacturer ? A: We are factory. Q: How much is the packaging size? A: Packing size is in accordance with your order, your product specifications to determine the package size. Q: How much does shipping cost and what shipping methods do you support? A: Shipping cost  is calculated based on the weight of the order and the distance it is travelling; Transport of large trucks to the seaport and international transport cooperation Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide customized Functions ? A: Yes, we can design and program as your requirements.  Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us

Contact us if you need more details on Cow or poultry feeding DC Linear Actuator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about electric linear actuator 48V、linear actuator 48V 7000N load force. If these products fail to match your need, please contact us and we would like to provide relevant information.
